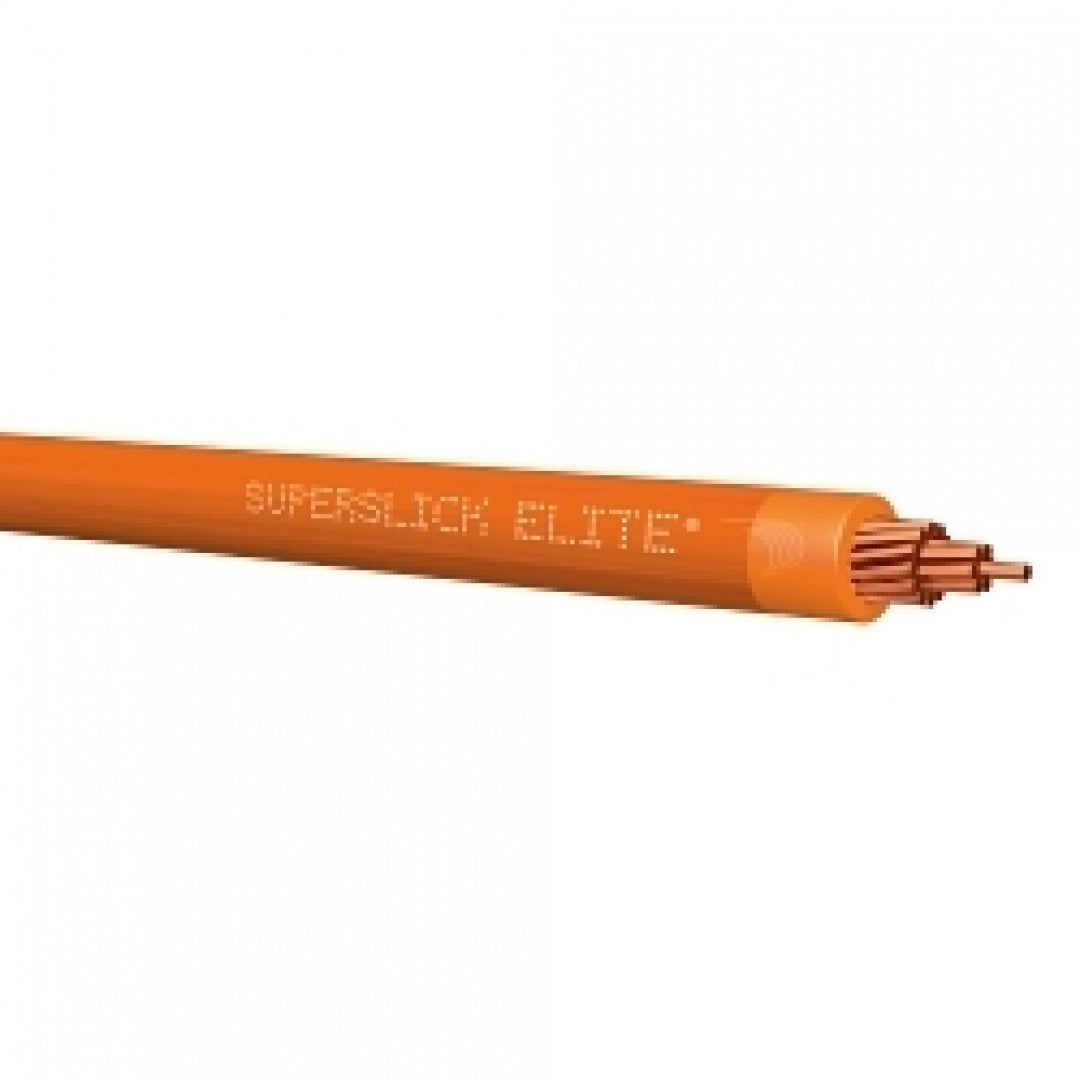

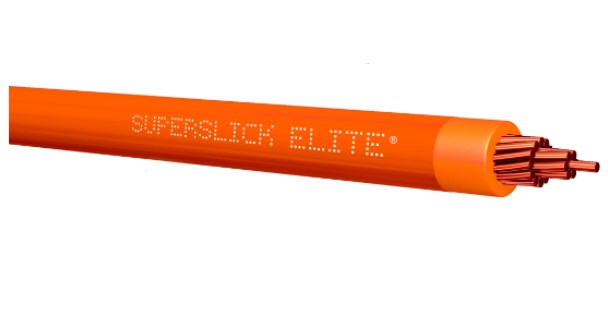

Encore Wire 118101207440 orange strd 6 cop thhn 600 VAC 500 ft reel

Product Description

The Encore Wire 118101207440 is a type THWN-2 building wire with a stranded copper conductor. This 6 AWG wire has a voltage rating of 600 VAC and an amperage rating of 75 A. It features a PVC insulation with a nylon jacket and is supplied on a 500 ft reel. Suitable for commercial applications.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

Type THWN-2 building wire with stranded copper conductor, PVC insulation, and nylon jacket, ideal for commercial applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101207440
• Country of Origin: US

Technical Specifications

• Amperage Rating: 75 A
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Orange
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.249 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Application: For commercial and general purpose, new construction or rewiring for 600 VAC applications
• Country of Origin: US
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
• Standard: UL
