Encore Wire 118101206440 Yellow Strd 6 Cop Thhn 600 VAC 500 ft

Product Description

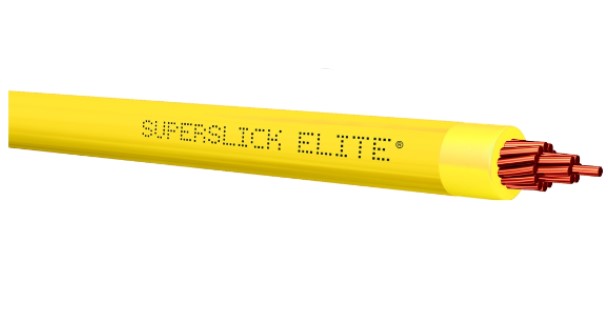

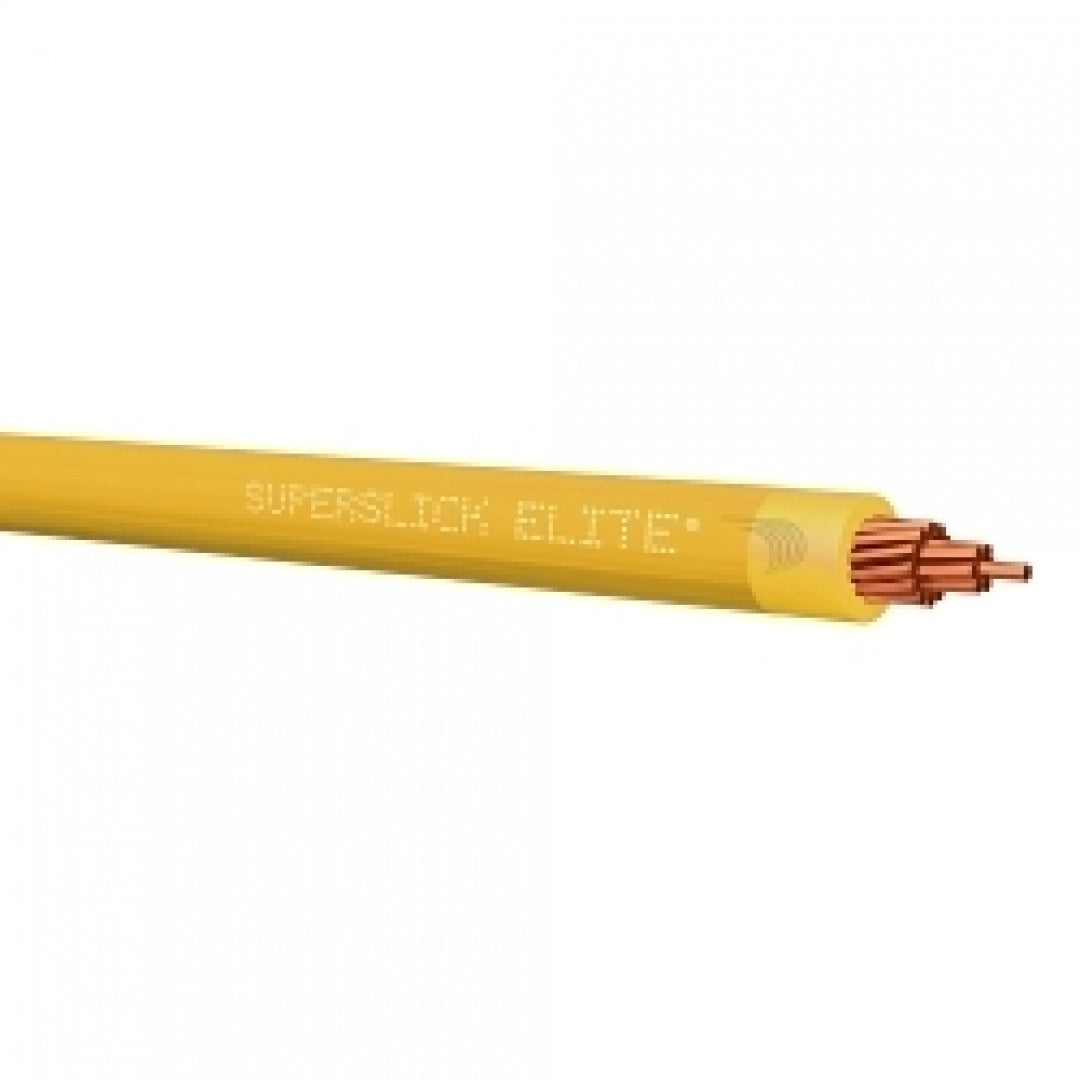

The Encore Wire 118101206440 is a building wire, type THWN-2, with a stranded copper conductor. This wire is rated for 600 VAC and has a 6 AWG conductor size. It features PVC insulation and a nylon jacket, with an outside diameter of 0.249 inches and a length of 500 ft.

• Features a color-coded polyvinyl chloride (PVC) insulation that is heat and moisture resistant and flame retardant.
• Constructed with a stranded, uncoated bare copper conductor per ASTM-B3, ASTM-B8, and ASTM-B787.
• Protected by a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This Encore Wire THWN-2 building wire is suitable for commercial applications, RoHS compliant, and adheres to UL, ASTM, CSA, NEMA, ANSI, and other industry standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101206440
• Country of Origin: US

Technical Specifications

• Amperage Rating: 75 A
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.249 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Application: For commercial and general purpose, new construction or rewiring for 600 VAC applications
• Country of Origin: US
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
• Standard & Approvals: Buy American Act Compliant, RoHS Compliant, UL-83/UL-758/UL-1063/UL-1581/UL-2556/UL E-156879, ASTM B800/ASTM B801/ASTM B836, Federal Specification AA-59544, CSA C22.2 No. 75, NEMA WC70/ICEA S-95-658, ANSI NFPA 79 AWM, New York State DOS-16120-87-1222-1048, IEEE 1202/FT4, ICEA T-29-520, ARRA 2009 Section 1605, MasterSpec Division 26 Sections 260519, 260523
