Encore Wire 118101204440 Copper THHN 6 Stranded 500 ft

Product Description

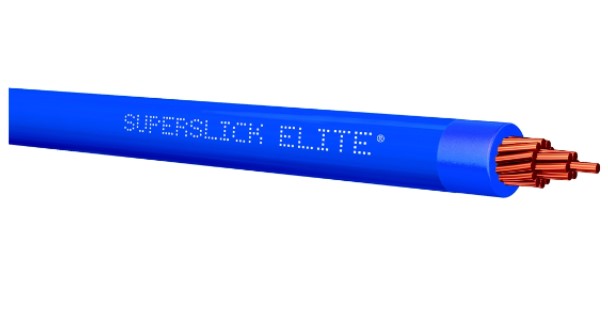

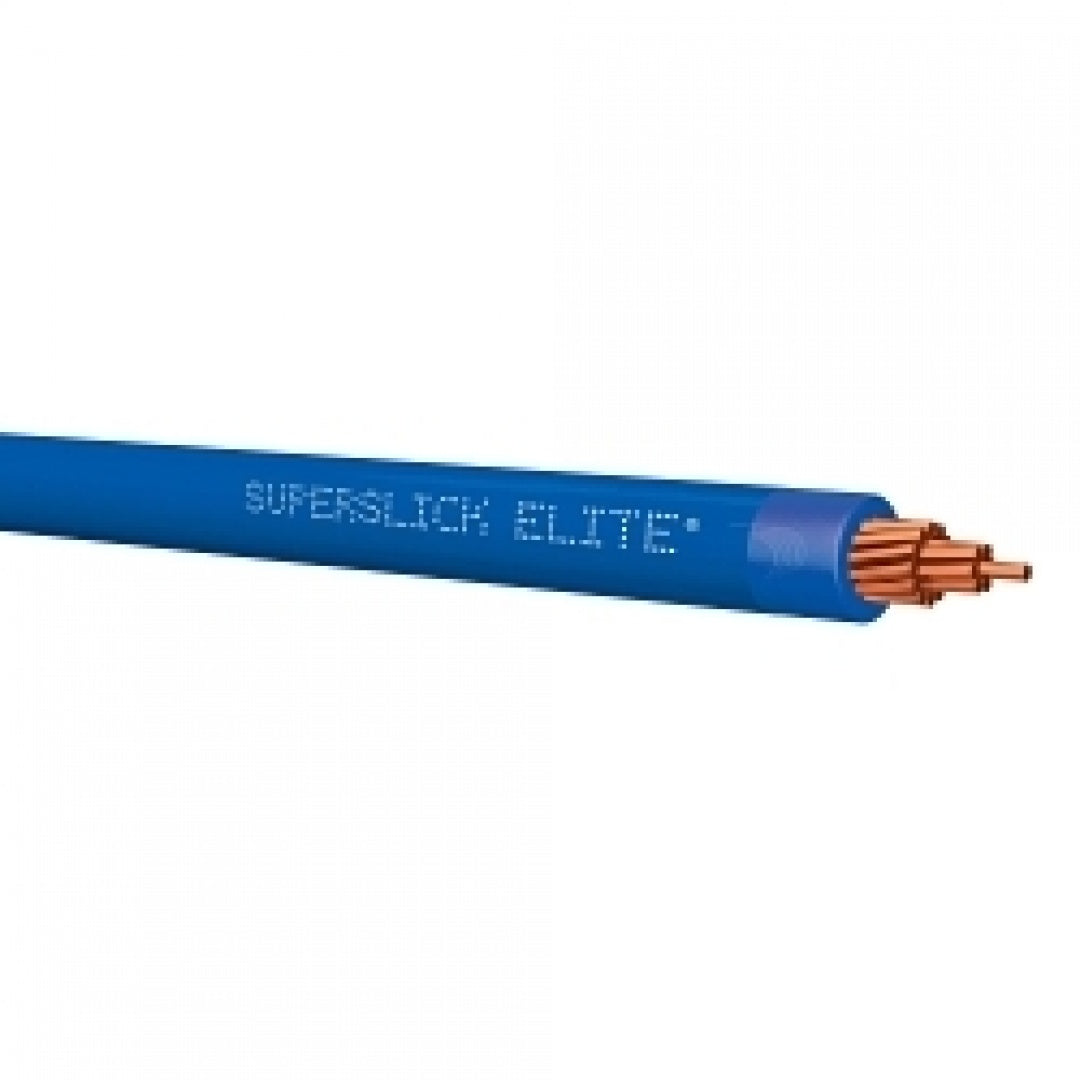

The Encore Wire 118101204440 is a building wire, Type THWN-2, with reel packaging. It operates at 600 VAC and 75 A. This wire features a single, stranded copper conductor of 6 AWG, with an outside diameter of 0.249 inches and a length of 500 ft. The conductor consists of 19 strands, insulated with PVC and jacketed with nylon, and is rated for 90 deg C.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

This THHN building wire is suitable for commercial applications and complies with various standards including UL, CSA, NEMA, and ANSI.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101204440
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 75 A
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Blue
• Jacket Material: Nylon
• Length: 500 ft
• Number of Conductors: 1
• Outside Diameter: 0.249 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
