Encore Wire 118101007465 Copper Thhn 8 Str 2500 feet Spool

Product Description

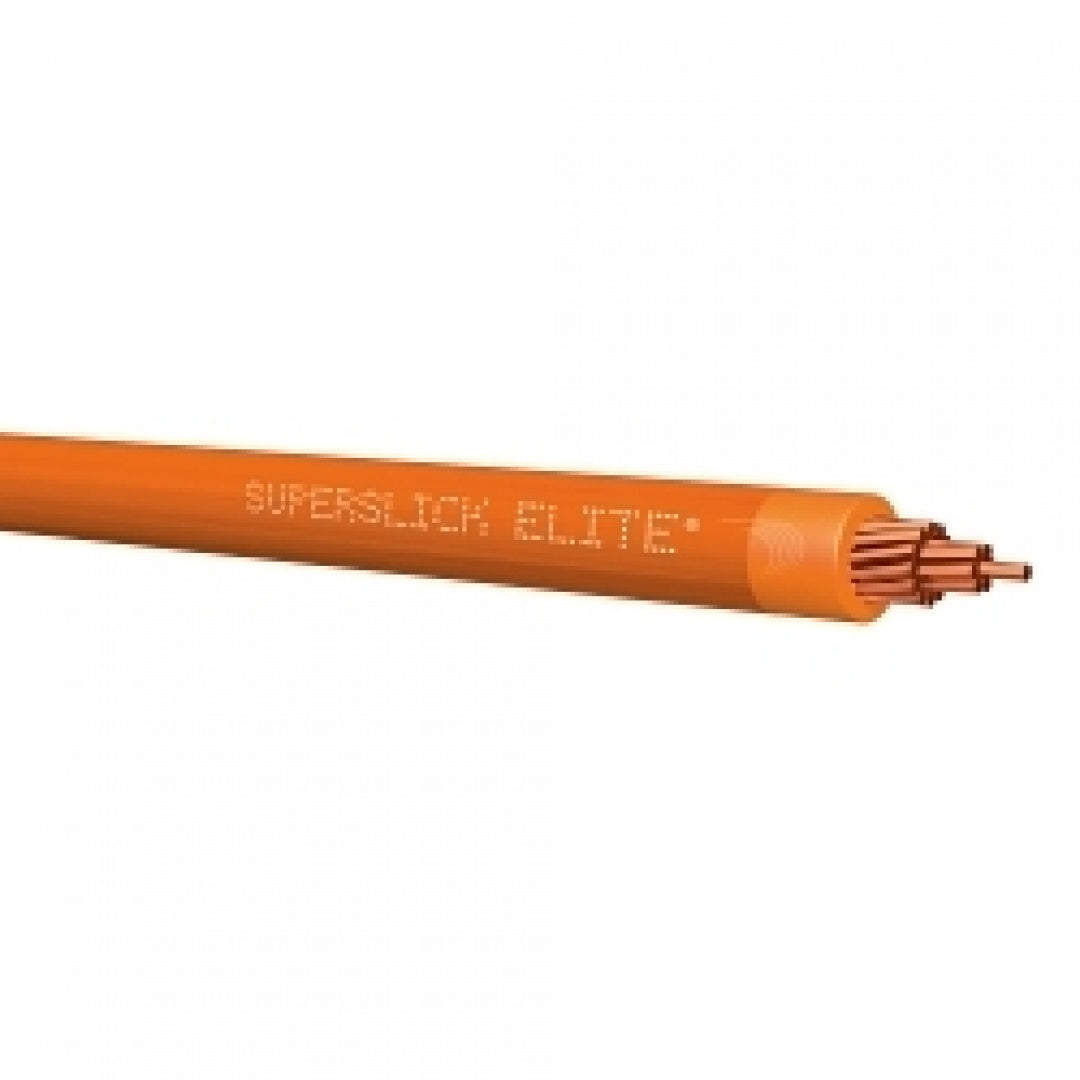

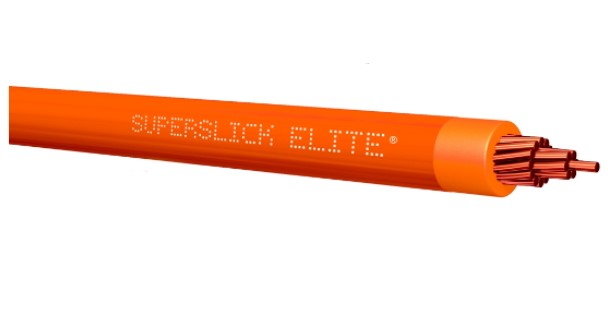

The Encore Wire 118101007465 is a building wire, Type THWN-2, supplied on a 2500 ft reel. It is rated for 600 VAC and 55 A. The wire features a single, stranded copper conductor of 8 AWG with PVC insulation and a nylon jacket, suitable for commercial applications.

• Features color-coded polyvinyl chloride (PVC) insulation that is heat and moisture resistant, and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787 standards.
• Protected by a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THWN-2 building wire is ideal for various commercial applications, ensuring reliable and safe electrical connections.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101007465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: UL File E-123774, E-156878, E-156879, cUL Listed, Reach, RoHS Compliant
