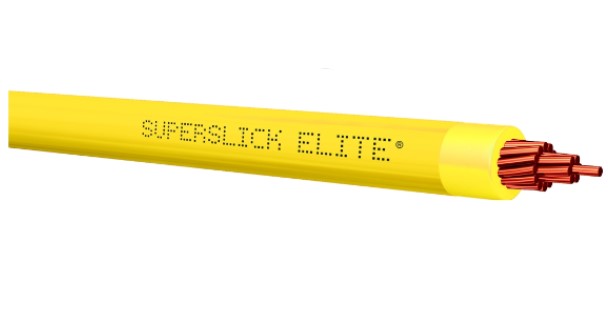

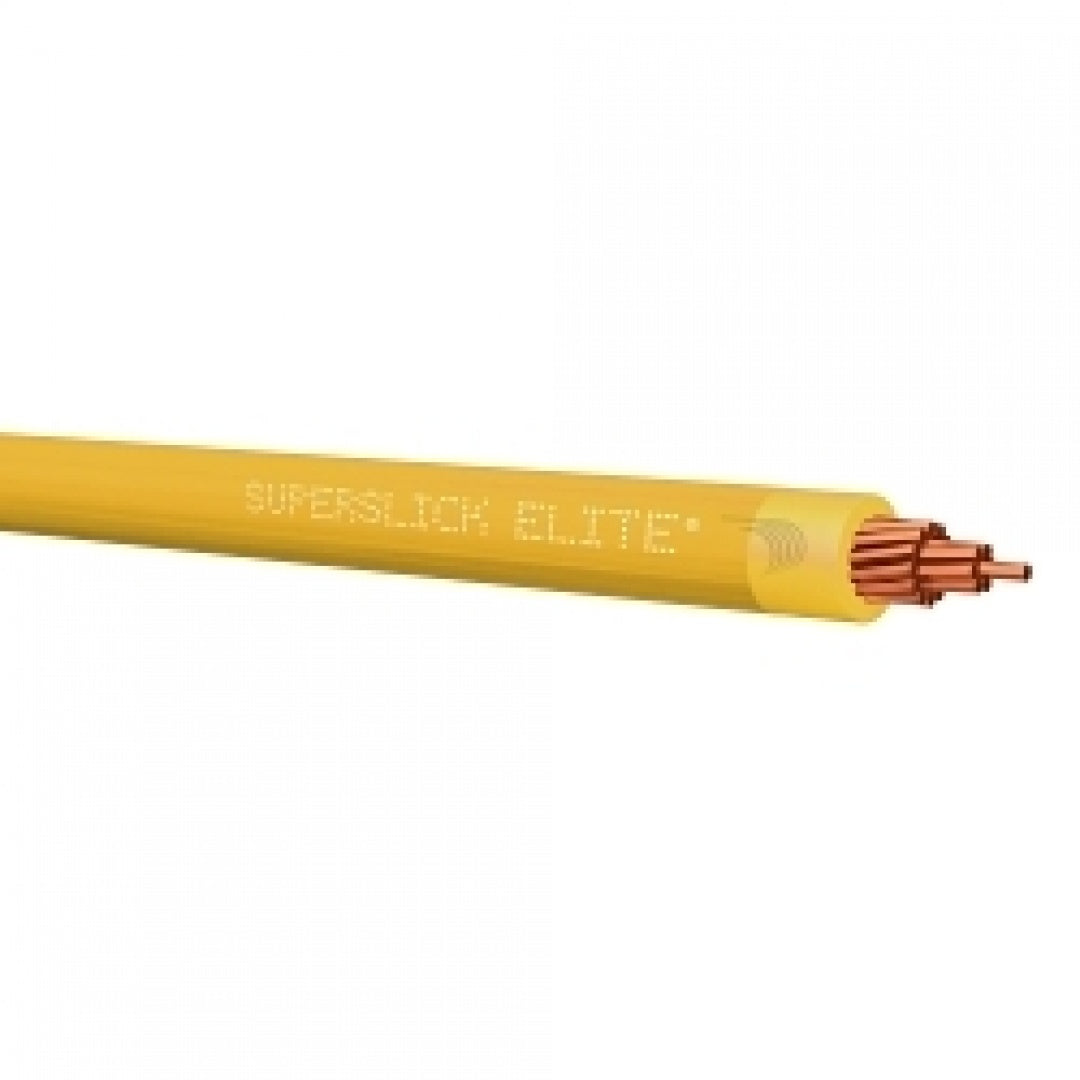

Encore Wire 118101006465 Copper Thhn 8 Str - Yellow - 2500 feet Spool

Product Description

The Encore Wire 118101006465 is a type THWN-2 building wire with a stranded copper conductor. This wire is rated for 600 VAC and 55 A. It features PVC insulation and a nylon jacket, suitable for commercial applications. The 8 AWG conductor has 19 strands and an outside diameter of 0.213 inches, with a length of 2500 ft.

• Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

Type THWN-2 building wire with stranded copper conductor, PVC insulation, and nylon jacket, ideal for various applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101006465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 55 A
• Conductor Size: 8 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Yellow
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
