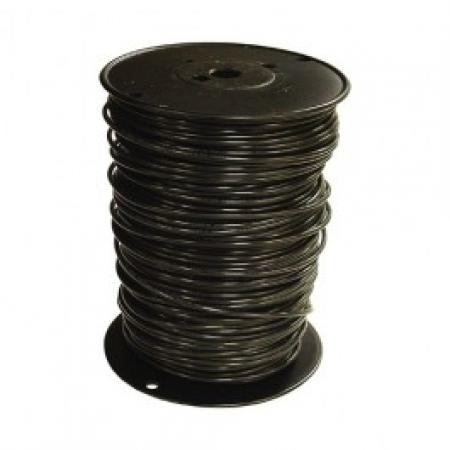

Encore Wire 118101001450 Cu Sse Thwn2 8 AWG Str 1000Reel

Product Description

The Encore Wire 118101001450 is a CU SSE THWN2 8 AWG STR wire supplied on a 1000ft reel. This building wire is rated for 600 VAC and has a stranded copper conductor. It features PVC insulation and a nylon jacket, suitable for commercial applications.

• Features a color-coded polyvinyl chloride (PVC) insulation that is heat and moisture resistant, and flame retardant.
• Constructed with a stranded, uncoated bare copper conductor per ASTM-B3, ASTM-B8 and ASTM-B787 standards.
• Protected by a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This Encore Wire THWN-2 building wire is ideal for various commercial applications, ensuring reliable and safe electrical connections.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 118101001450
• Country of Origin: United States

Technical Specifications

• Catalog Number: 118101001450
• Manufacturer: Encore Wire
• Brand: ENCORE WIRE
• Country of Origin: United States
• Made in USA: Yes
• Conductor Material: Copper
• Conductor Size: 8 AWG
• Number of Conductors: 1
• Amperage Rating: 55 A
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Black
• Jacket Material: Nylon
• Length: 1000 ft
• Outside Diameter: 0.213 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THWN-2
• Voltage Rating: 600 VAC
• Application: Commercial Applications
• Standard & Approvals: Buy American Act Compliant, RoHS Compliant, UL-83/UL-758/UL-1063/UL-1581/UL-2556/UL E-156879, ASTM B800/ASTM B801/ASTM B836, Federal Specification AA-59544, CSA C22.2 No. 75, NEMA WC70/ICEA S-95-658, ANSI NFPA 79 AWM, New York State DOS-16120-87-1222-1048, IEEE 1202/FT4, ICEA T-29-520, ARRA 2009 Section 1605, MasterSpec Division 26 Sections 260519, 260523
