Encore Wire 106100911450 THHN Copper Building Wire 10 AWG 1000 ft

Product Description

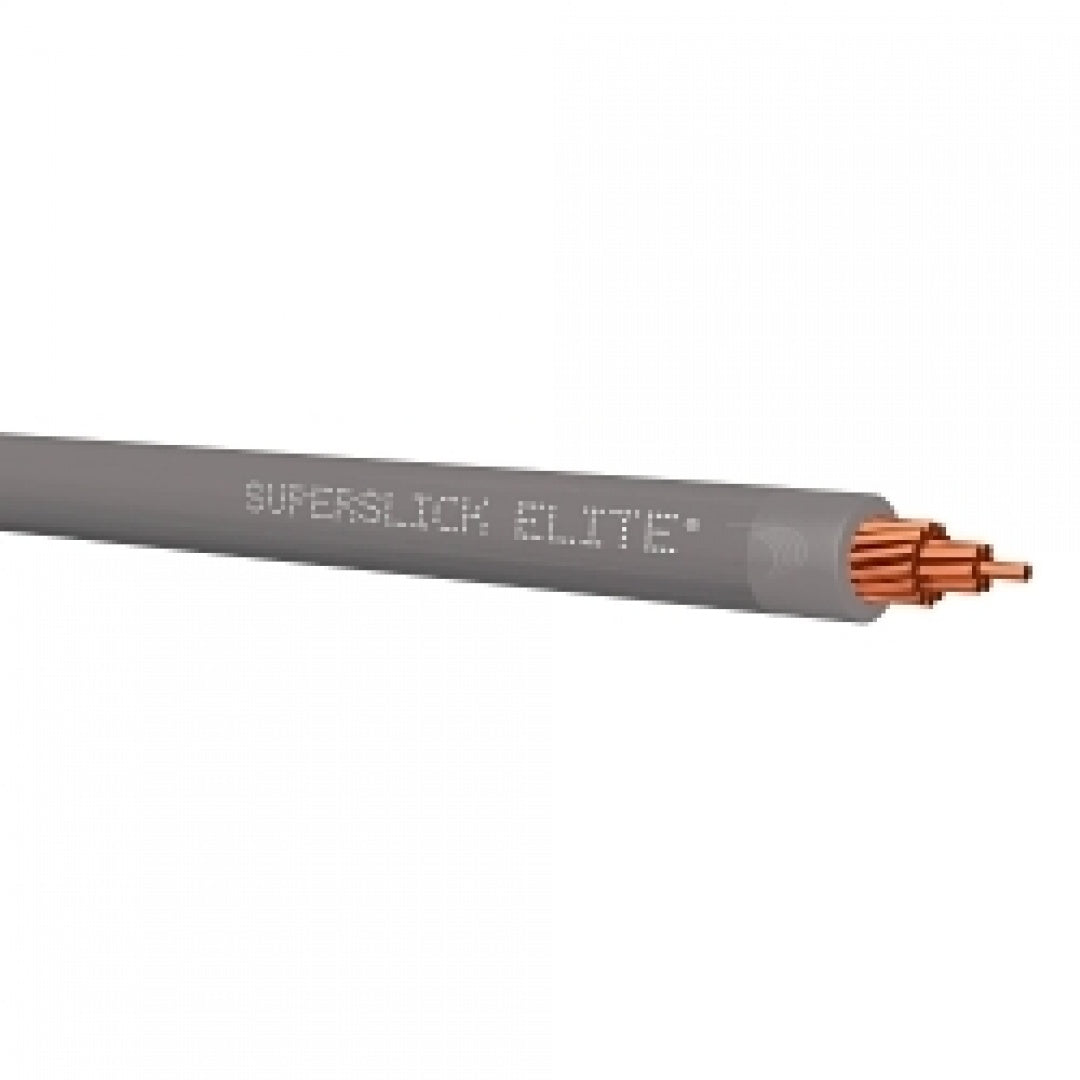

The Encore Wire 106100911450 is a THHN building wire with a stranded copper conductor. This 10 AWG wire is suitable for general purpose applications, new construction, or rewiring for 600V applications. It features a PVC insulation with a nylon jacket and is rated for wet, damp, and dry locations. The wire comes in a 1000 ft length on a reel.

• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• Suitable for wet, damp and dry locations
• Rated gasoline and oil-resistant

Product Highlights

THHN building wire with a stranded copper conductor, PVC insulation, and nylon jacket. Ideal for various applications requiring a 600V rating.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100911450
• Country of Origin: United States

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Gray
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Ampacity: 30
• Voltage: 600 V
• Conductors: 1
