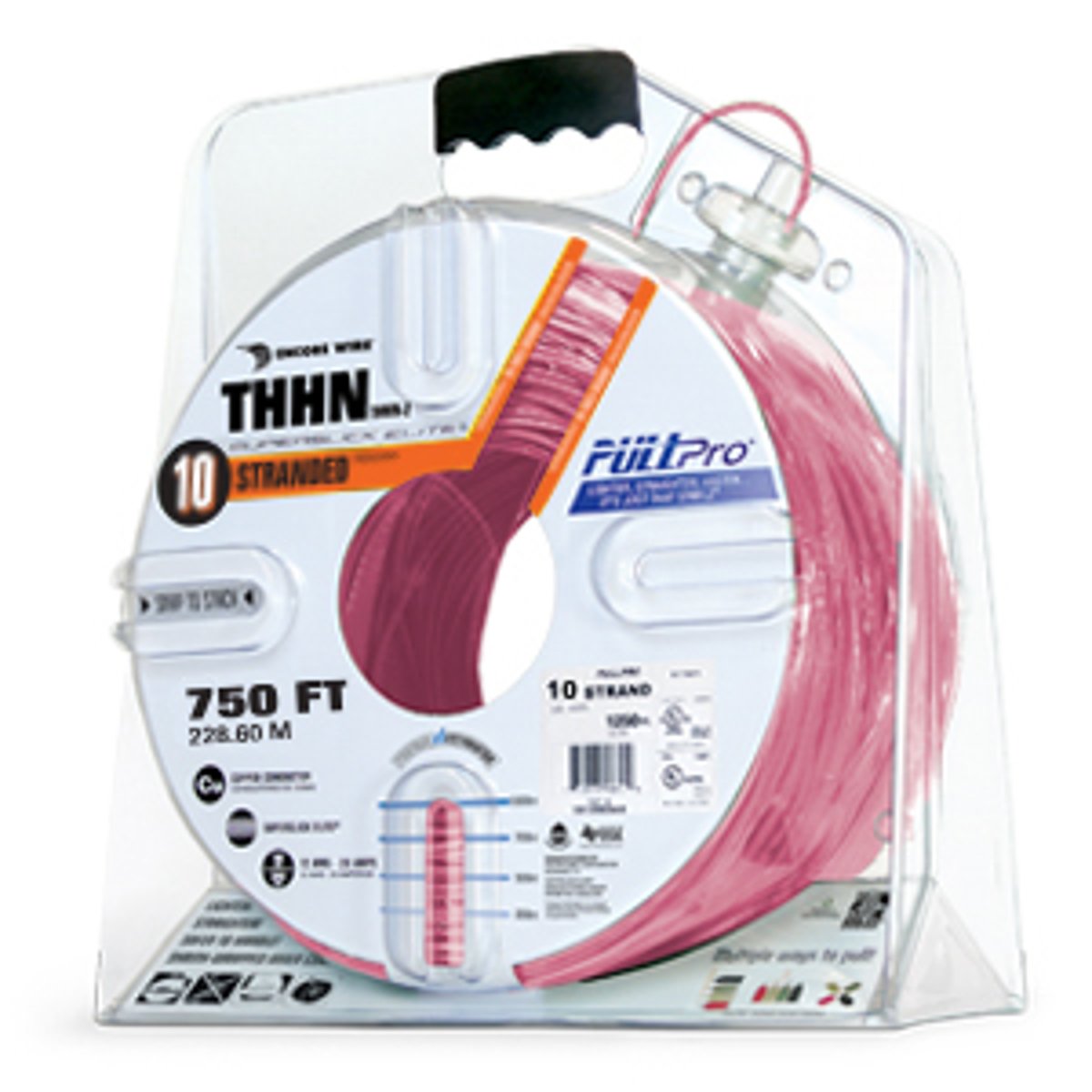

Encore Wire 106100909445 PullPro Copper THHN Wire, 10 AWG, Stranded, 750 ft

Product Description

The Encore Wire 106100909445 is a PullPro copper THHN wire with a 10 AWG stranded conductor. This wire is designed for general purpose, new construction, or rewiring applications up to 600 VAC. It features a unique coil pattern for tangle-free pulling and is constructed with PVC insulation and a polyamide jacket.

• 10 AWG stranded copper conductor
• Rated for 600V applications
• PVC insulation provides resistance against moisture, heat, and sunlight

Product Highlights

The Encore Wire PullPro THHN wire ensures easy handling and safe installation. Ideal for various building and wiring projects.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100909445
• Country of Origin: USA

Technical Specifications

• Catalog Number: 106100909445
• Manufacturer: Encore Wire
• Brand: ENCORE WIRE
• Country of Origin: United States
• Made in USA: Yes
• Conductor Material: Copper
• Conductor Size: 10 AWG
• Number of Conductors: 1
• Stranding: Stranded
• Application: For general purpose, new construction or rewiring for 600 VAC applications
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Polyamide
• Length: 750 ft
• Mfg Standards/Approvals: UL Listed, CSA Certified and RoHS Compliant
• Outside Diameter: 0.128 in
• Series: PullPro
• Strands: 12
• Temperature Rating: 90 deg C
• Type: THHN-2
• Voltage Rating: 600 V
