Encore Wire 106100907465 copper thhn 10 str 2500 feet spool

Product Description

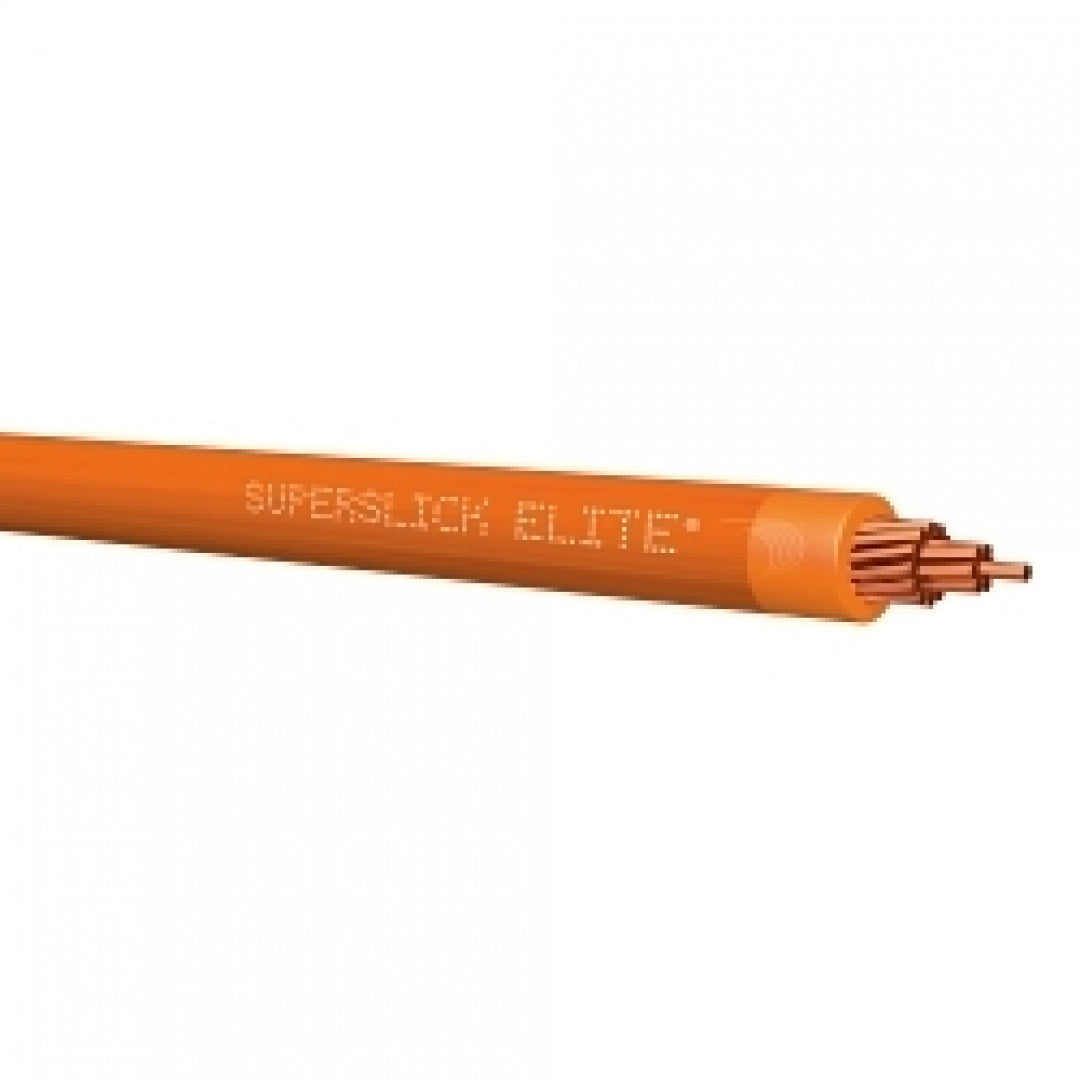

The Encore Wire 106100907465 is a type THHN building wire with a stranded copper conductor. This wire is suitable for commercial, general purpose, new construction, and rewiring applications requiring 600V. It features a PVC insulation with a nylon jacket and is rated for gasoline and oil resistance.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Has a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN wire is suitable for wet, damp, and dry locations and is compliant with RoHS, REACH, and Buy American Act standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100907465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Current Rating: 20 Ampere (60 Deg C), 20 Ampere (75 Deg C), 30 Ampere (90 Deg C)
• Wire Length: 2500 FT
• Standard: ASTM Class B3/B8/B787, AWM Spec 1316/1317/1318/1319/1320/1321, Buy American Act Compliant, RoHS Compliant, REACH Compliant, UL File E-123774/E-156878/E-156879, cUL Listed, MasterSpec Division 26 Sections 260519/260523, CSA C22.2 #75, ARRA 2009 Section 1605, UL-83/1063/1581/2556, Federal Specification A-A-59544
