Encore Wire 106100906465 Copper THHN 10 Str 2500 feet Spool

Product Description

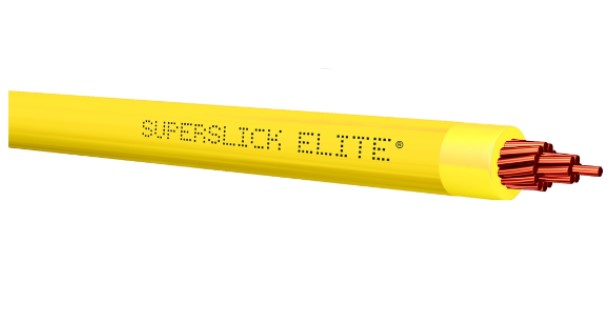

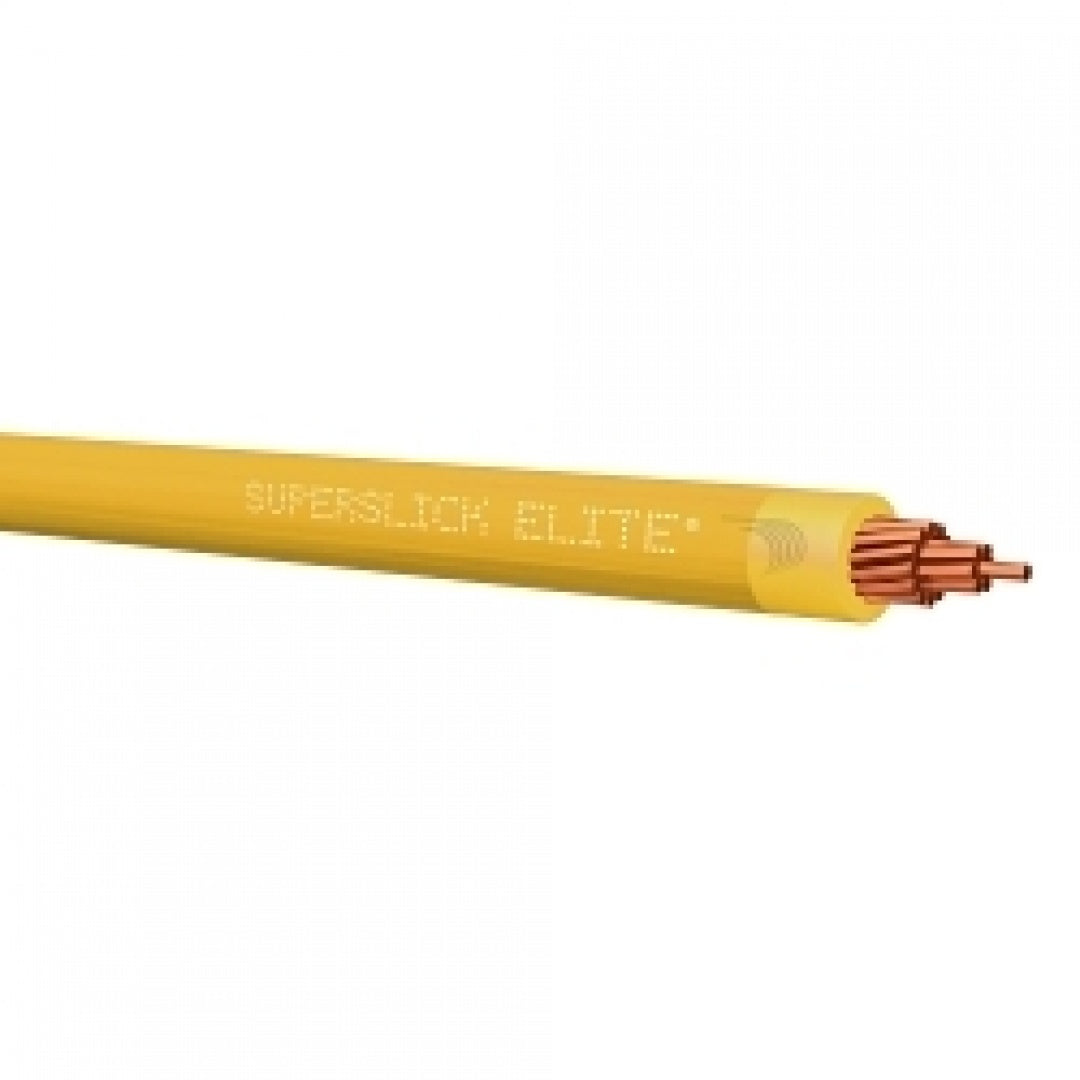

The Encore Wire 106100906465 is a type THHN building wire supplied on a 2500 ft spool. This wire features a stranded copper conductor with PVC insulation and a nylon jacket. It is designed for 600 VAC applications and has an amperage rating of 40 A.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8, and ASTM-B787 standards.
• Features a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

Suitable for commercial, general purpose, new construction, and rewiring applications requiring 600 V. Compliant with RoHS, REACH, and Buy American Act standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100906465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Country of Origin: USA
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Application: Commercial, General Purpose, New Construction and Rewiring for 600 V Applications
• Current Rating: 20 Ampere (60 Deg C), 20 Ampere (75 Deg C), 30 Ampere (90 Deg C)
• Temperature Rating (Wet): 75 Deg C
