Encore Wire 106100905450 Thhn Cable 10 Awg 500 Ft Green

Product Description

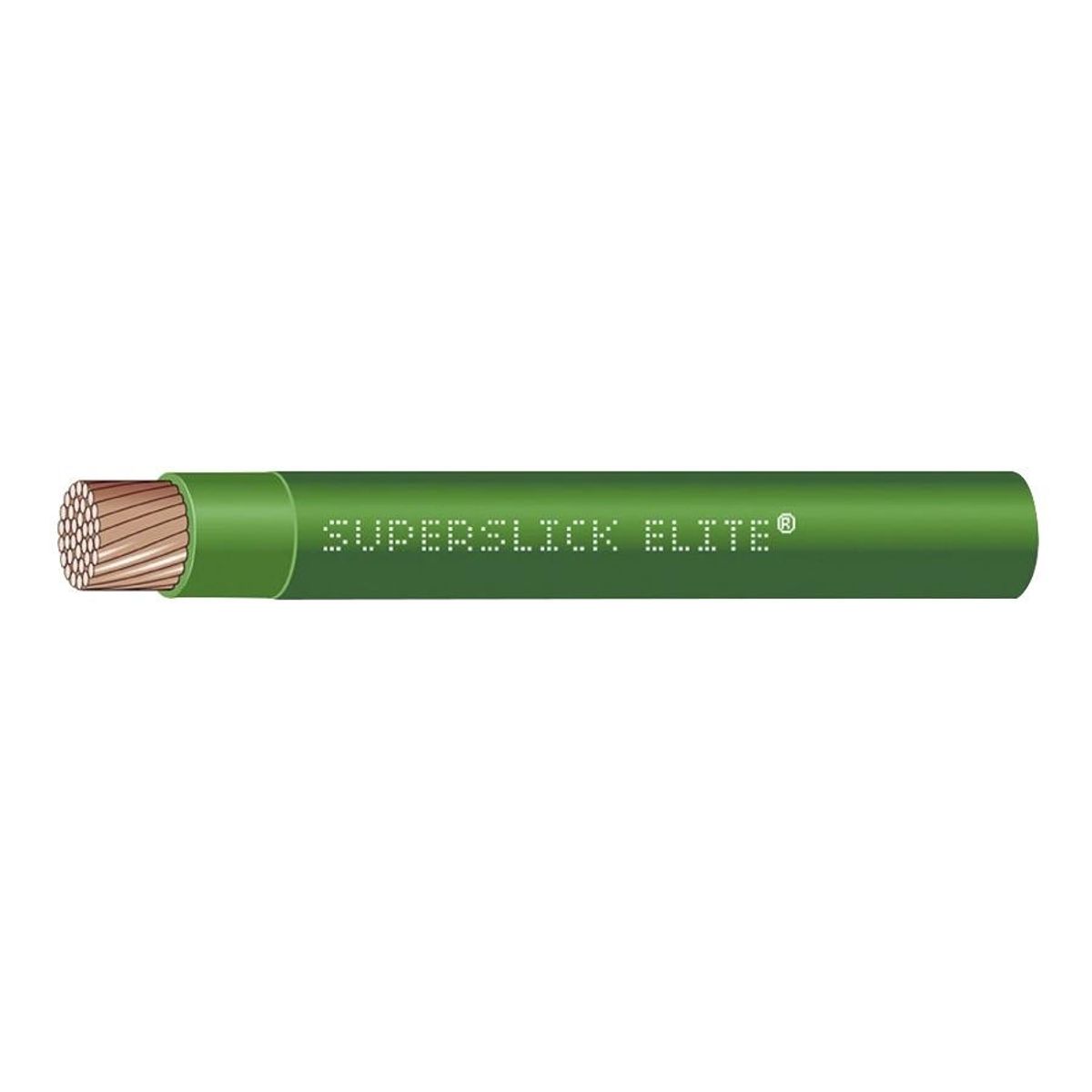

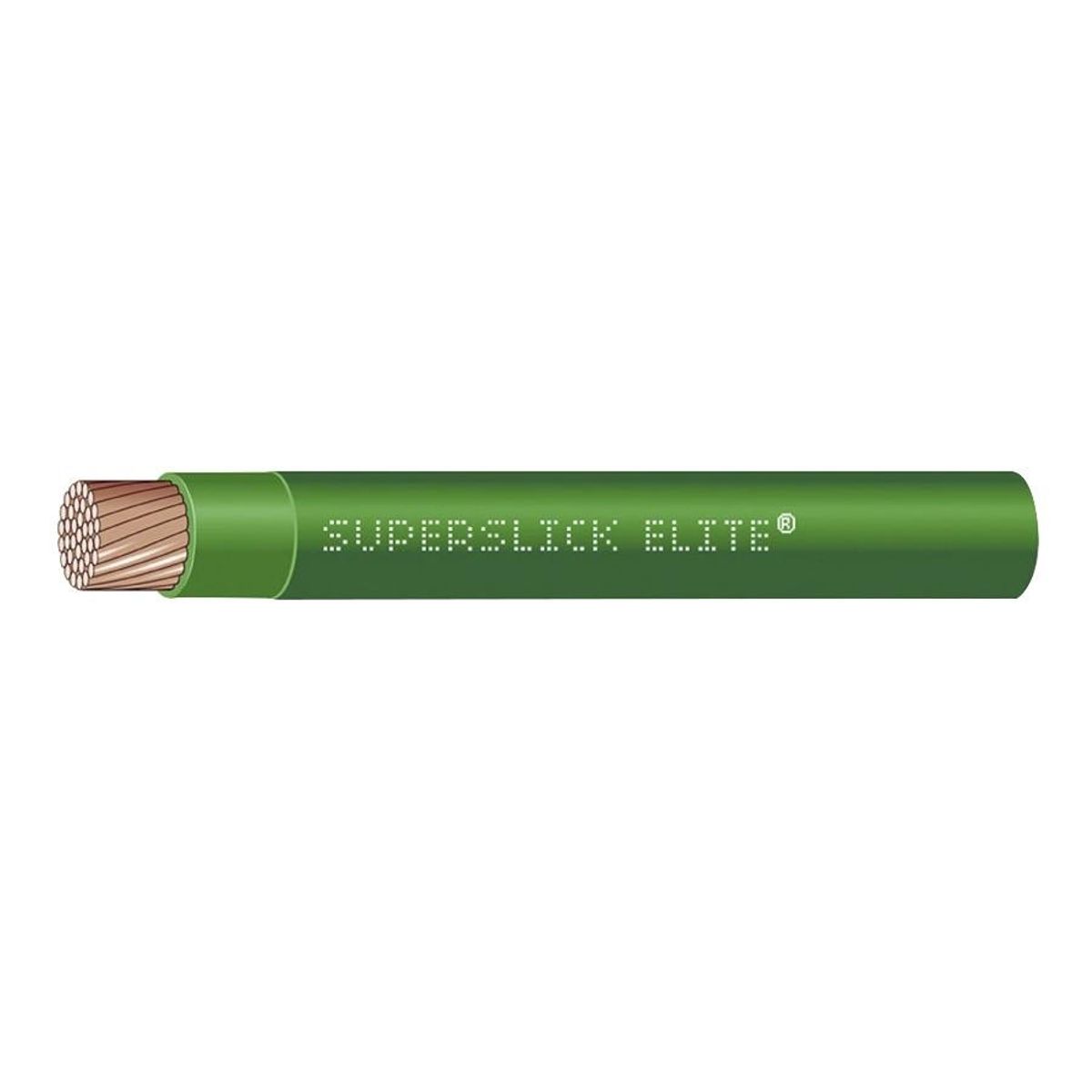

The ENCORE WIRE 106100905450 is a 10-AWG stranded copper THHN/THWN-2 building wire rated for 600 volts and suitable for use in conduit in residential, commercial, and industrial wiring applications. The conductor is 19-strand copper with PVC insulation and a nylon jacket, giving it the flexibility and pull-ease expected from the Superslick Elite line. It is green-jacketed, making it the standard choice for equipment grounding conductor (EGC) runs. The 500-foot reel format reduces job-site waste and is sized for panel feeders, branch circuits, and sub-panel runs commonly pulled by licensed electricians.

This wire is used in conduit installations where THHN or THWN-2 rated conductors are required. The green color identifies it as a grounding conductor per NEC conventions. Typical install scenarios include service entrance equipment, distribution panels, motor circuits, and commercial build-outs requiring code-compliant grounding conductors. The 500-foot reel is practical for larger commercial or multi-unit residential jobs where a single pull may consume significant footage.

Key Features

• 19-strand copper construction for flexibility during conduit pulls
• PVC insulation with nylon jacket for abrasion resistance and reduced pull friction
• Dual temperature rating: 90 degrees C dry/wet, 75 degrees C oil and coolant environments
• 600-volt rating suitable for standard branch circuit and feeder applications
• Green jacket identifies wire as equipment grounding conductor per NEC convention
• 500-foot reel format minimizes splice points on longer runs

Compatibility

Designed for use in conduit systems requiring 10-AWG THHN/THWN-2 stranded copper conductors rated at 600 volts, consistent with NEC-compliant branch circuit and feeder wiring installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before terminating or splicing. THHN wire must be installed in conduit or a raceway — it is not rated for direct burial or open-air exposed runs without additional protection. Green conductors are reserved for equipment grounding use; do not repurpose for ungrounded or grounded (neutral) conductors.

Technical Specifications

• Conductor Material: Copper
• AWG: 10
• Strands: 19
• Voltage Rating: 600 volts
• Amperage Rating: 35 A / 40 A
• Temperature Rating: 90 degrees C Wet/Dry, 75 degrees C Oil/Coolant
• Outside Diameter: 0.16 inches
• Length: 500 ft
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Green
• Country of Origin: France

Standard Information

• Brand: ENCORE WIRE
• Manufacturer Part Number: 106100905450
