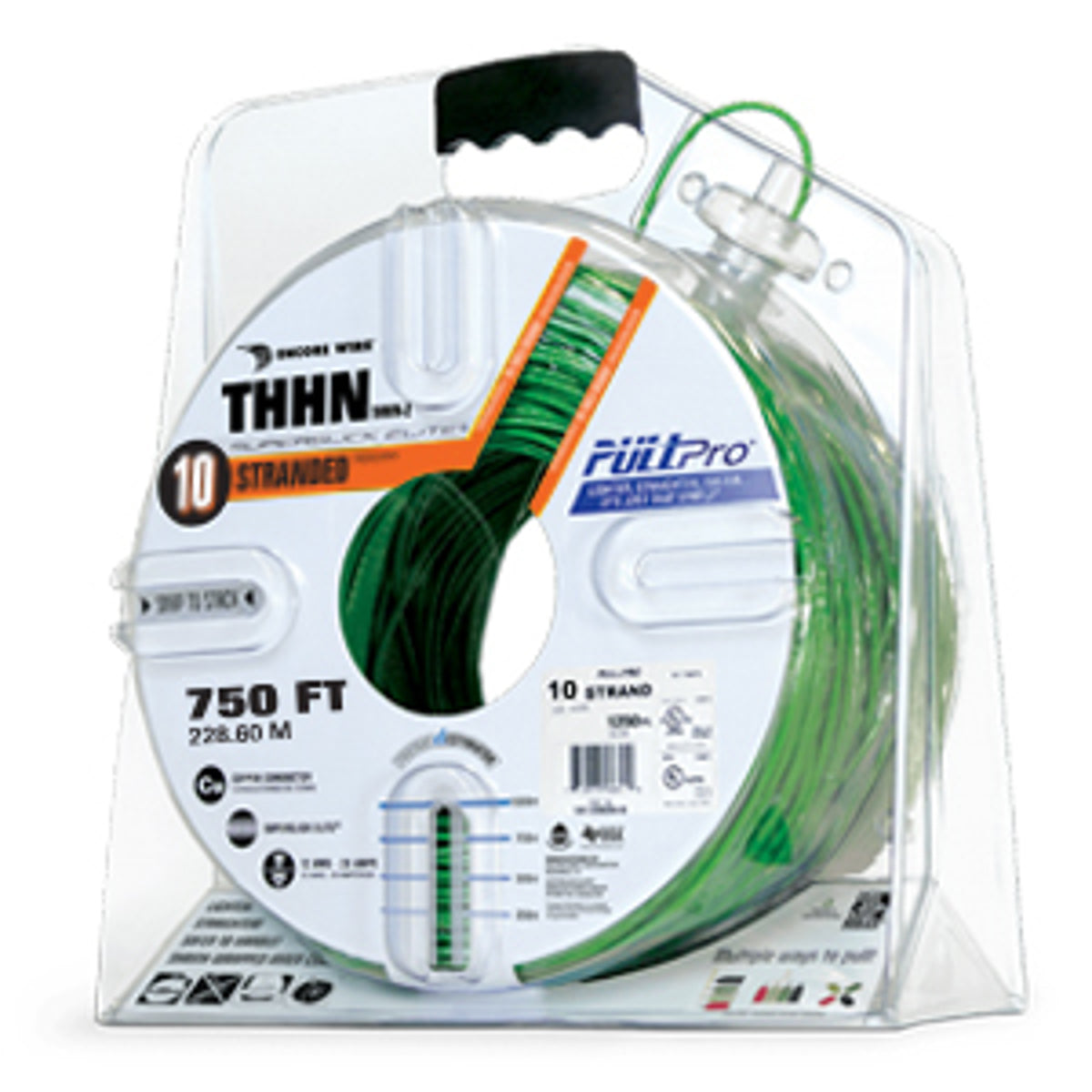

Encore Wire 106100905445 PullPro Copper THHN Wire, 10 AWG, Stranded, 750 ft

Product Description

The Encore Wire 106100905445 is a PullPro copper THHN wire, 10 AWG, stranded, with a single conductor. This building wire is rated for 600 VAC and has a temperature rating of 90 degrees C. It is constructed with a PVC insulation material and a nylon jacket material.

• Color code polyvinyl chloride, heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

THHN wire with stranded copper conductor, PVC insulation, and nylon jacket. Ideal for general purpose wiring for power distribution.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100905445
• Country of Origin: United States

Technical Specifications

• Catalog Number: 106100905445
• Manufacturer: Encore Wire
• Brand: ENCORE WIRE
• Country of Origin: United States
• Made in USA: Yes
• Color: Green
• Conductor Material: Copper
• Conductor Size: 10 AWG
• Number of Conductors: 1
• Stranding: Stranded
• Amperage Rating: 40 A
• Insulation Material: PVC
• Jacket Material: Nylon
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Outside Diameter: 0.161 in
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Wire Length: 750 FT
• Buy American Act (BAA) Compliant: Y
• American Recovery and Reinvestment Act (ARRA) Compliant: Y
• Conductor Type: Stranded Copper
