Encore Wire 106100904465 Copper THHN 10 Str Blue 2500 feet Spool

Product Description

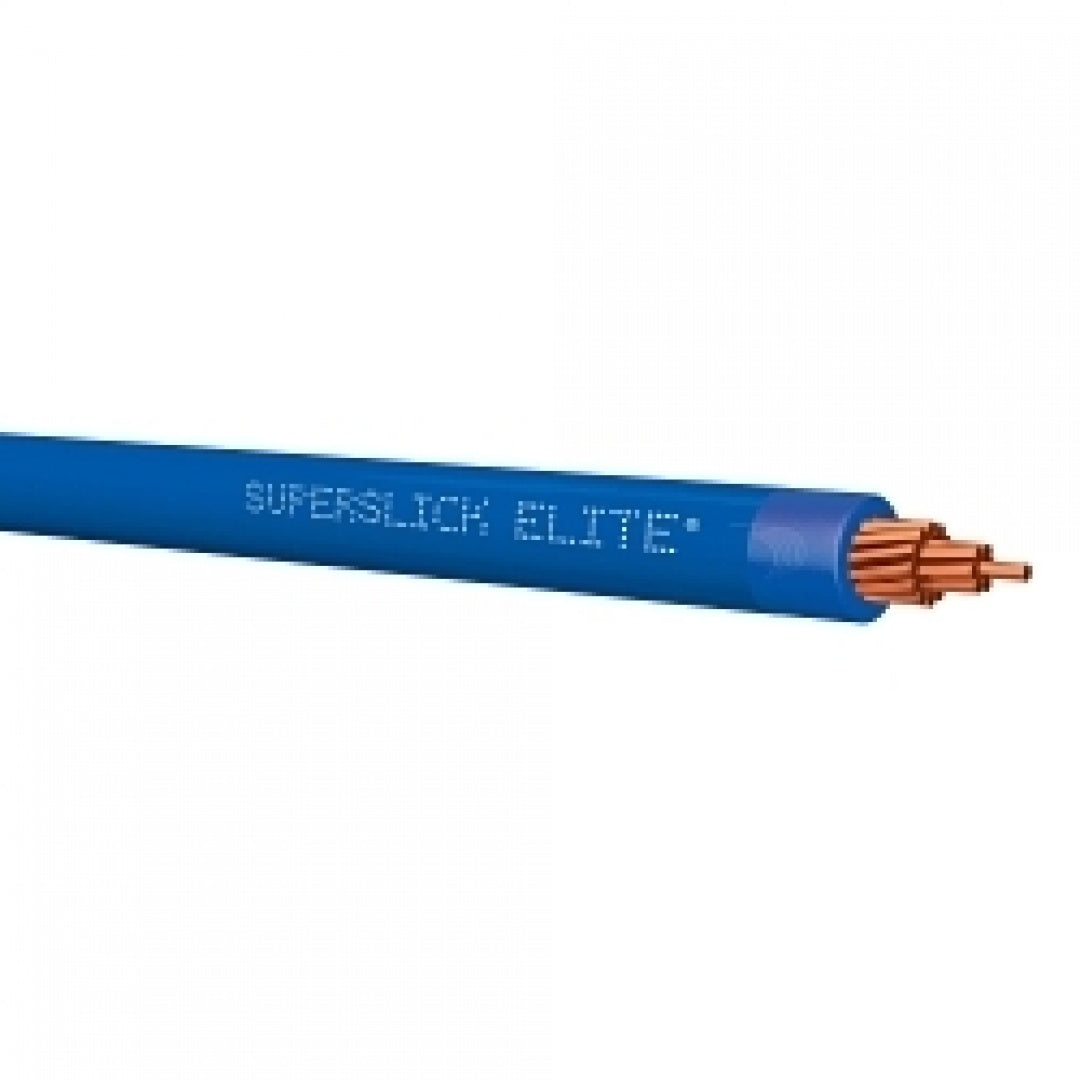

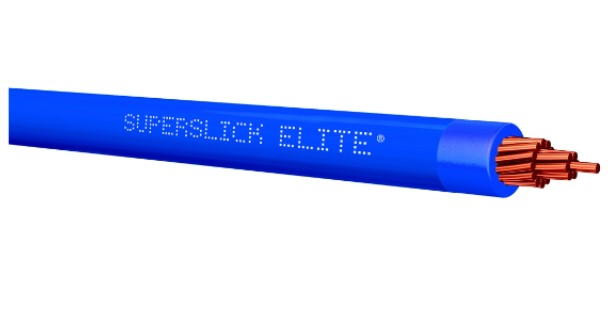

The Encore Wire 106100904465 is a type THHN building wire supplied on a 2500 ft reel. This 600 VAC wire features a 10 AWG stranded copper conductor with PVC insulation and a nylon jacket. It is suitable for use in wet, damp, and dry locations and is rated gasoline and oil-resistant. It is designed for commercial, general purpose, new construction, and rewiring applications.

• Color code polyvinyl chloride, heat and moisture resistant, flame retardant compound
• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

THHN building wire with stranded copper conductor, PVC insulation, and nylon jacket, suitable for various applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100904465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Blue
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
• Country of Origin: USA
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Application: Commercial
• Conductor Material: Copper
• Standard: UL
