Encore Wire 106100903465 Cu Sse Thhn 10 Awg Str 2500Reel

Product Description

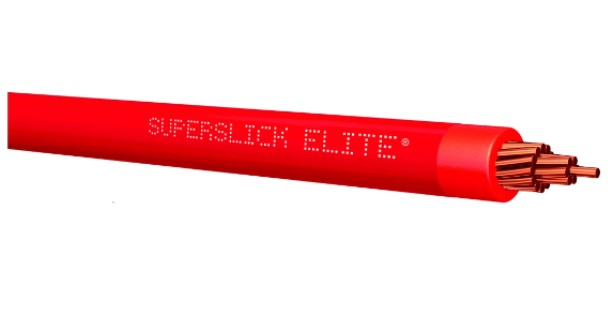

The Encore Wire 106100903465 is a copper stranded THHN wire. This wire is suitable for commercial, general purpose, new construction, and rewiring applications requiring 600V. It features a stranded copper conductor with PVC insulation and a nylon jacket. Made in the USA.

• Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• Color coded polyvinyl chloride, heat and moisture resistant, flame retardant compound
• A tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

THHN wire with a 10 AWG stranded copper conductor, PVC insulation, and nylon jacket, suitable for various 600V applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100903465
• Country of Origin: USA

Technical Specifications

• Catalog Number: 106100903465
• Manufacturer: Encore Wire
• Brand: ENCORE WIRE
• Country of Origin: United States
• Made in USA: Yes
• Color: Red
• Conductor Material: Copper
• Conductor Size: 10 AWG
• Number of Conductors: 1
• UPC: 739373109354
• GTIN: 00739373109354
• Amperage Rating: 40 A
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 2500 ft Reel
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Outside Diameter: 0.161 in
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Application: Commercial, General Purpose, New Construction and Rewiring for 600 V Applications
• Current Rating: 20 Ampere (60 Deg C), 20 Ampere (75 Deg C), 30 Ampere (90 Deg C)
• Standard: ASTM Class B3/B8/B787, AWM Spec 1316/1317/1318/1319/1320/1321, Buy American Act Compliant, RoHS Compliant, REACH Compliant, UL File E-123774/E-156878/E-156879, cUL Listed, MasterSpec Division 26 Sections 260519/260523, CSA C22.2 #75, ARRA 2009 Section 1605, UL-83/1063/1581/2556, Federal Specification A-A-59544
• Wire Length: 2500 FT
