Encore Wire 106100903450 copper thhn 10 stranded

Product Description

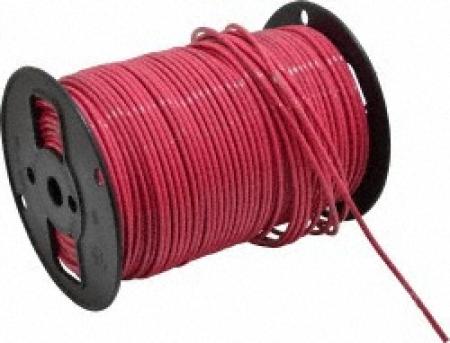

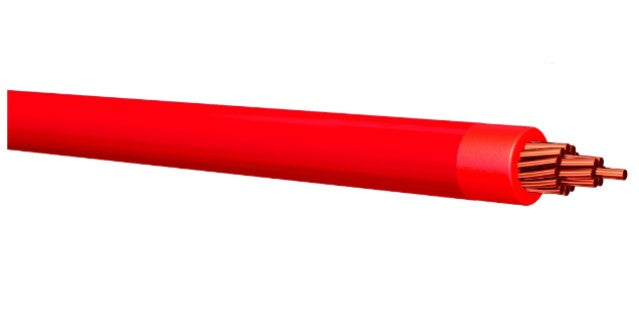

The Encore Wire 106100903450 is a type THHN building wire with a stranded copper conductor. This 600 VAC, 40 A wire features a PVC insulation and a nylon jacket. It has a 10 AWG conductor with an outside diameter of 0.161 inches and a length of 1000 ft. Suitable for wet, damp, and dry locations and is rated gasoline and oil-resistant.

• Features a color-coded polyvinyl chloride, heat and moisture resistant, flame retardant compound
• Composed of stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
• Has a tough, polyamide, nylon outer covering per UL-83 and UL-1063

Product Highlights

The Encore Wire THHN building wire is ideal for commercial, general purpose, new construction, and rewiring applications requiring 600 V.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100903450
• Country of Origin: US - United States

Technical Specifications

• Amperage Rating: 40 A
• Conductor Size: 10 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Color: Red
• Jacket Material: Nylon
• Length: 1000 ft
• Number of Conductors: 1
• Outside Diameter: 0.161 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 deg C
• Type: Type THHN
• Voltage Rating: 600 VAC
• Manufacturer: ENCORE WIRE
