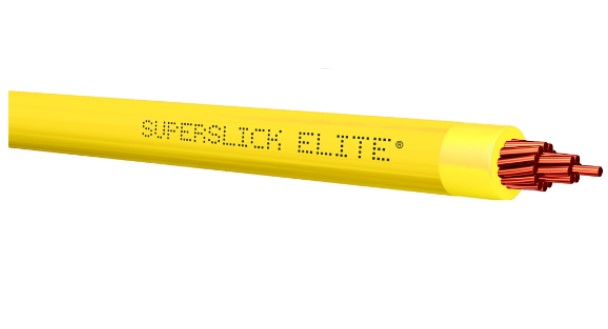

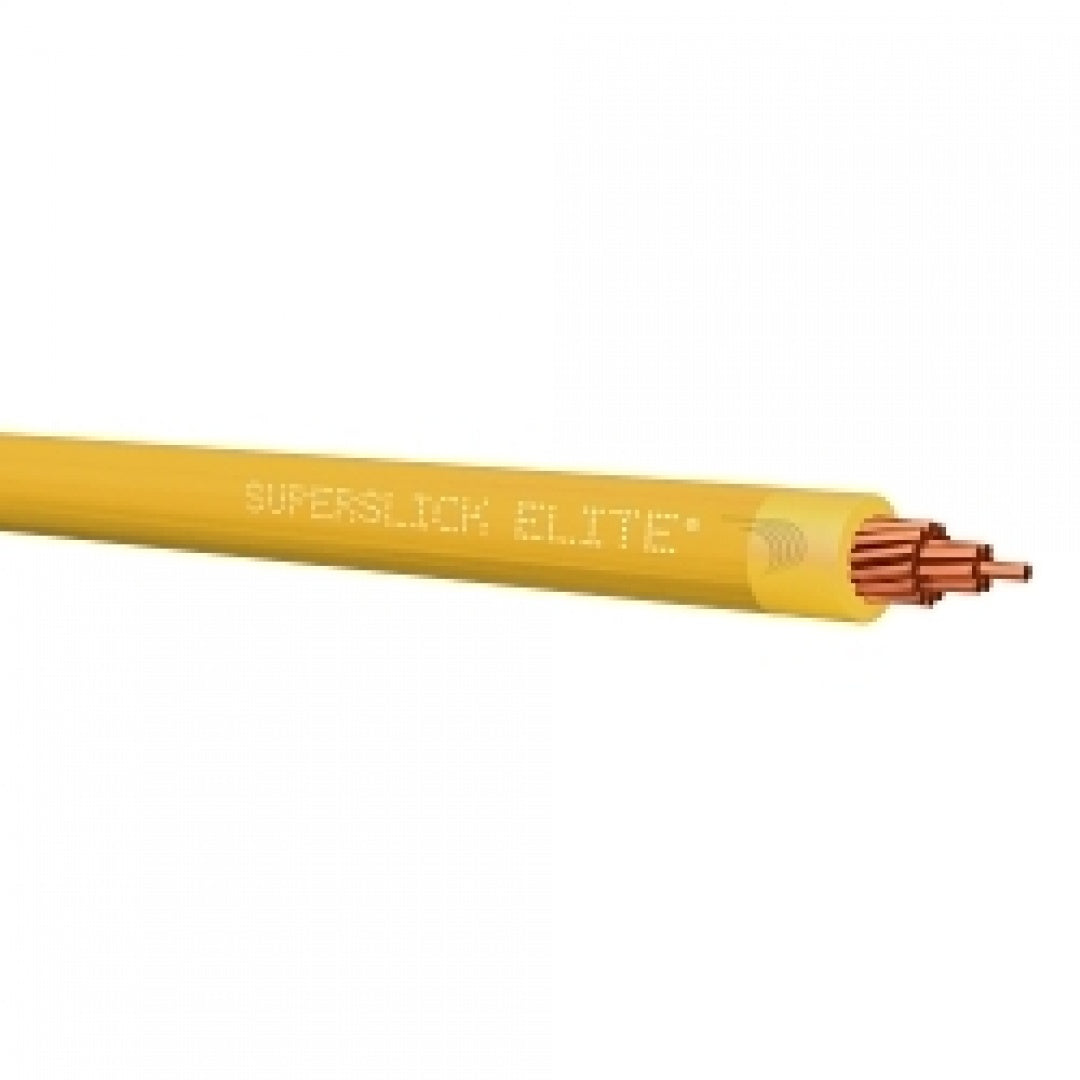

Encore Wire 106100806465 Building Wire 600 VAC 2500 feet Reel

Product Description

The Encore Wire 106100806465 is a type THHN building wire designed for 600 VAC applications. This wire features a stranded copper conductor with PVC insulation and a nylon jacket. It is suitable for use in wet, damp, and dry locations. The wire comes in a 2500 ft reel.

• Features a color-coded polyvinyl chloride insulation that is heat and moisture resistant, and flame retardant.
• Constructed with stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787.
• Features a tough, polyamide, nylon outer covering per UL-83 and UL-1063.

Product Highlights

This THHN building wire is ideal for commercial, general purpose, new construction, and rewiring projects requiring 600 V applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100806465
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 30 A
• Conductor Size: 12 AWG
• Conductor Type: Stranded Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Length: 2500 ft
• Number of Conductors: 1
• Outside Diameter: 0.128 in
• Packaging Type: Reel
• Strands: 19
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
• Type: Type THHN
• Voltage Rating: 600 VAC
• Mfg Standards/Approvals: ARRA, Buy American Act, Reach, RoHS Compliant, UL File E-123774, E-156878, E-156879, cUL Listed
• Electrical Category: Wire And Cable
• Electrical Subcategory: Electrical Cable
• RoHS Compliance: Yes
• UNSPSC: 26121614
• Application: Commercial, General Purpose, New Construction and Rewiring for 600 V Applications
• Catalog Description (MFR): CU SSE THHN 12 AWG STR YELLOW 2500REEL
• Current Rating: 20 Ampere (60 Deg C), 20 Ampere (75 Deg C), 20 Ampere (90 Deg C)
• Standard: ASTM Class B3/B8/B787, AWM Spec 1316/1317/1318/1319/1320/1321, Buy American Act Compliant, RoHS Compliant, REACH Compliant, UL File E-123774/E-156878/E-156879, cUL Listed, MasterSpec Division 26 Sections 260519/260523, CSA C22.2 #75, ARRA 2009 Section 1605, UL-83/1063/1581/2556, Federal Specification A-A-59544
• Wire Length: 2500 FT
