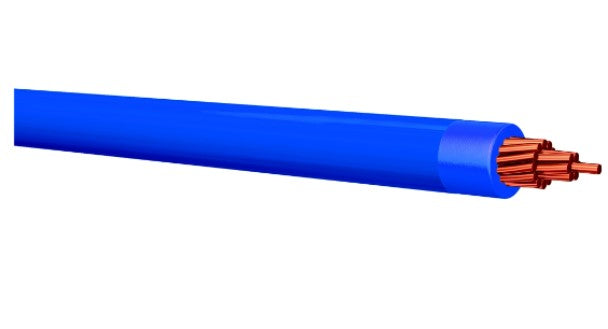

Encore Wire 106100804460 Copper THHN 12 Stranded

Product Description

The Encore Wire 106100804460 is a Copper THHN 12 Stranded wire. This THHN/THWN-2 building wire is designed for general-purpose applications as defined by the National Electrical Code (NEC) and is permitted for new construction or rewiring for 600-volt applications. It is suitable for use in wet or dry locations at temperatures not exceeding 90 C.

• Slick, Nylon outer jacket for easy pulling.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This THHN wire is suitable for various applications requiring THHN, THWN-2, MTW, or AWM compliance, ensuring versatility and reliability in electrical installations.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100804460

Technical Specifications

• Color: Blue
• Manufacturer: ENCORE WIRE
• AWG: 12
• Ampacity: 20
• Conductor: Stranded
• Wire Type: THHN/THWN-2
• Conductors: Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787; Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; Institute of Electrical and Electronics Engineers; ARRA 2009; Section 1605 "Buy American" Compliant
