Encore Wire 106100803465 Thhn Wire 12 Awg 600V Red 2500 Ft

Product Description

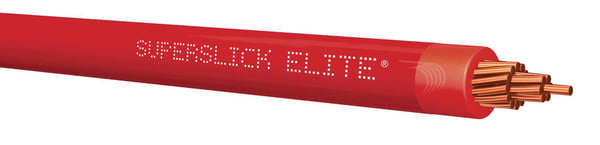

The ENCORE WIRE 106100803465 is a Type THHN building wire designed for use in residential, commercial, and industrial electrical installations. This 12 AWG stranded copper conductor wire is rated for 600 volts AC and carries a 30-amp current rating, making it a standard choice for branch circuit wiring in conduit. The conductor is built from 19 strands of copper for flexibility and pull-through performance. A PVC insulation layer is covered by a nylon jacket, which adds abrasion resistance and eases installation through conduit runs. The red jacket provides straightforward color identification during rough-in and inspection.

This wire is suited for use in dry and wet locations where THHN or THWN-2 rated conductors are specified. Electricians use it in conduit for panel feeds, branch circuits, and equipment wiring in residential and light commercial projects. Each reel provides 2500 feet of continuous wire, reducing the number of splices needed on larger jobs and keeping conduit pulls efficient. The 0.128-inch outer diameter allows for clean bundling in standard conduit sizes.

Key Features

• 12 AWG stranded copper conductor with 19 strands for flexibility and pull ease
• 600 volt AC rating suitable for standard branch circuit and feeder applications
• 30-amp current capacity for common residential and commercial circuit loads
• PVC insulation with nylon outer jacket for abrasion resistance in conduit
• Red jacket color for quick identification during installation and inspection
• 2500-foot reel packaging minimizes splices on longer conduit runs

Compatibility

Designed as an OEM-style replacement and general-use Type THHN building wire for installation in conduit systems where 12 AWG, 600-volt-rated stranded copper conductors are required per NEC specifications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and lock out the circuit before making any connections. THHN wire must be pulled through conduit rather than used as open or exposed wiring. Verify conduit fill calculations before pulling multiple conductors to ensure compliance with NEC Chapter 9 fill tables.

Technical Specifications

• Wire Type: THHN
• Conductor Material: Stranded Copper
• Conductor Size: 12 AWG
• Number of Strands: 19
• Number of Conductors: 1
• Voltage Rating: 600 volts AC
• Ampacity: 30 amps
• Outer Diameter: 0.128 inches
• Length: 2500 feet
• Insulation Material: PVC
• Jacket Material: Nylon
• Jacket Color: Red
• Temperature Rating: 90 degrees C
• Packaging: Reel

Standard Information

• Brand: ENCORE WIRE
• Manufacturer Part Number: 106100803465
