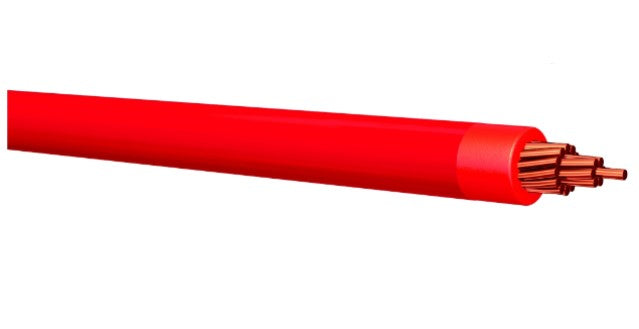

Encore Wire 106100803460 THHN Building Wire 12 AWG 2000 ft

Product Description

The Encore Wire 106100803460 is a THHN building wire designed for general purpose applications as defined by the National Electrical Code (NEC). This 12 AWG stranded copper conductor is suitable for new construction or rewiring for 600-volt applications. It is appropriate for use in wet or dry locations at temperatures not to exceed 90 degrees Celsius.

• Features a slick nylon outer jacket for easy pulling.
• Rated gasoline and oil-resistant II.
• Suitable for 600-volt applications.

Product Highlights

This THHN building wire is constructed with a stranded copper conductor, PVC insulation, and a nylon jacket, ensuring durability and resistance to various environmental factors.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100803460
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: 1
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787; Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; Institute of Electrical and Electronics Engineers; ARRA 2009; Section 1605 \"Buy American\" Compliant
• Voltage: 600 V
• Amperage: 30 A
• Conductor: 12 AWG Conductor Stranded Copper Conductor
• Outside Diameter: 0.128 in
• Length: 2000 ft
• Strands: 19
• Resistance: Gasoline/Heat/Moisture/Oil/Sunlight Resistance
• Jacket Color: Red
• Temperature: 90 deg C
