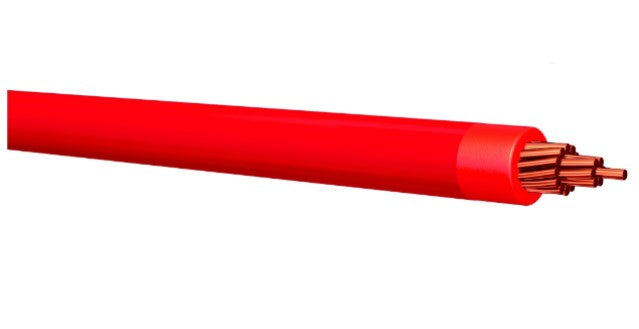

Encore Wire 106100703460 THHN Building Wire 14 AWG 2000 ft

Product Description

The Encore Wire 106100703460 is a THHN building wire designed for general purpose applications as defined by the National Electrical Code (NEC). This 14 AWG stranded copper conductor wire is suitable for new construction or rewiring for 600-volt applications. It features a PVC insulation with a nylon jacket and is gasoline, heat, moisture, and oil resistant.

• Slick, Nylon outer jacket for easy pulling
• Gasoline and oil-resistant II
• Suitable for use in wet or dry locations

Product Highlights

THHN/THWN-2 building wire appropriate for use in dry locations at 90 C, or not to exceed 60 C in wet locations or where exposed to oils or coolants

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100703460
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: 1
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787, Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 \"Buy American\" Compliant
• Voltage: 600 V
• Amperage: 25 A
• Conductor: 14 AWG
• Conductor Type: Stranded Copper Conductor
• Outside Diameter: 0.109 in
• Length: 2000 ft
• Strands: 19
• Temperature Rating: 90 deg C
