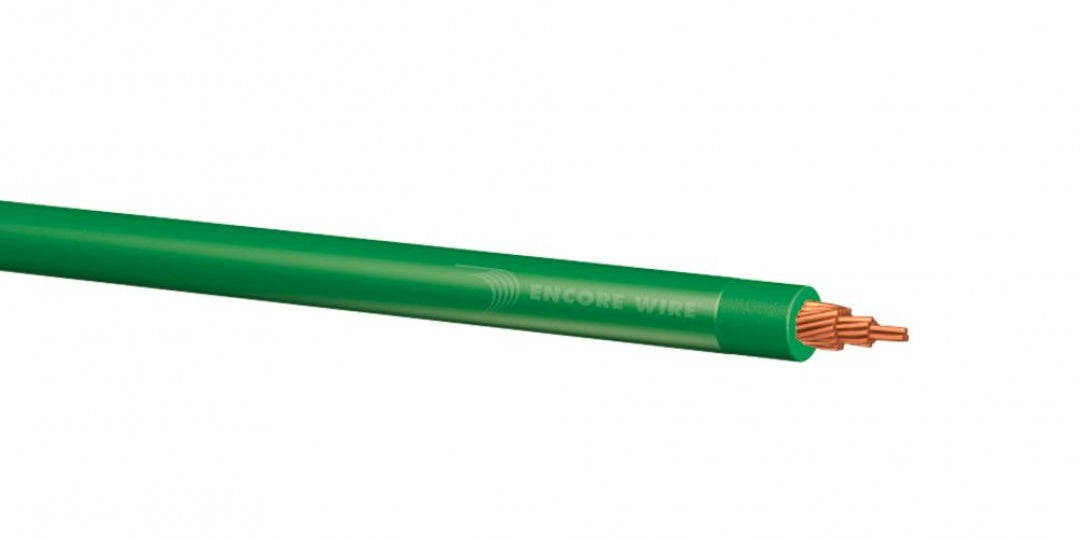

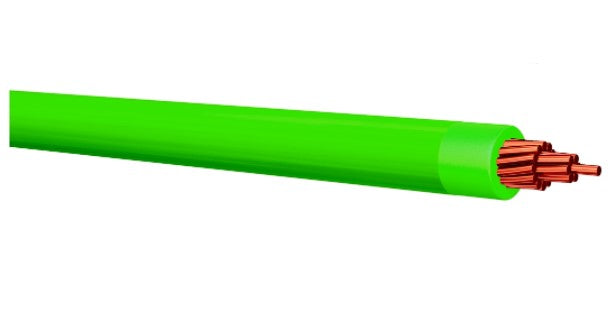

Encore Wire 106100605460 tffn copper 16 stranded green

Product Description

The Encore Wire 106100605460 is a TFFN building wire designed for general purpose applications. Suitable for new construction or rewiring for 600-volt applications. The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 degrees Celsius. Features a tough, polyamide, Nylon outer covering.

• Slick, Nylon outer jacket for easy pulling.
• VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.

Product Highlights

TFFN building wire with a Nylon jacket, suitable for 600V applications and both wet and dry environments.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100605460
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3; Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787; Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers, ARRA 2009; Section 1605 \"Buy American\" Compliant
• Voltage: 600 V
• Conductor: 16 AWG Conductor Stranded Copper Conductor
• Outside Diameter: 0.105 in
• Length: 2000 ft
• Strands: 26
• Temperature Rating: 90 deg C
