Encore Wire 106100501460 tffn Building Wire 18 AWG 500 ft. Spool

Product Description

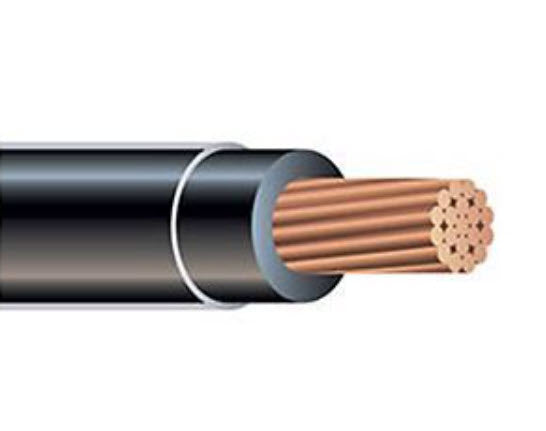

The Encore Wire 106100501460 is a TFFN building wire featuring an 18 AWG stranded bare copper conductor. This wire is encased in heat and moisture resistant PVC insulation with an abrasion, moisture, gasoline, and oil resistant nylon jacket. It is UL Listed and RoHS compliant.

• Heat capacity of 105 degree Celsius
• Suitable for indoor and outdoor applications
• Rated for a maximum of 600 Volts

Product Highlights

This TFFN building wire is suitable for fixture, machine tool, or appliance wiring. The stranded copper conductor ensures flexibility, while the nylon jacket provides added protection.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 106100501460

Technical Specifications

• Length: 500 ft
• Standard: UL Listed and RoHS Compliant
• Application: Fixture Wire, Machine Tool Wire or Appliance Wire
• Type: TFFN
• Conductor Size: 18 AWG
• Conductor Material: Bare Copper
• Jacket Material: Nylon
• Insulation Material: PVC
• No. of Conductors: 1
• Outer Diameter: 85 mil
• Solid/Stranded: Stranded
• Temp. Rating: 105°C
