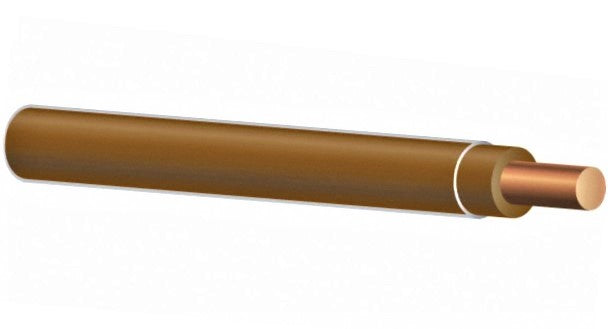

Encore Wire 105100908050 thhn Building Wire 10 AWG 1000 ft

Product Description

The Encore Wire 105100908050 is a THHN building wire intended for general purpose applications as defined by the National Electrical Code (NEC). This 600V wire is suitable for new construction or rewiring. It features gasoline, heat, moisture, oil, and sunlight resistance with a PVC insulation and nylon jacket.

• Slick, Nylon outer jacket for easy pulling.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

THHN building wire with solid copper conductor, PVC insulation, and nylon jacket. Suitable for 600V applications and resistant to various environmental factors.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100908050
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Voltage: 600 V
• Amperage: 30 A
• Conductors: 1
• Conductor Material: Solid Copper
• Conductor Size: 10 AWG
• Outside Diameter (OD): 0.149 in
• Length: 1000 ft
• Resistance: Gasoline/Heat/Moisture/Oil/Sunlight Resistance
• Insulation: PVC
• Jacket: Nylon
• Jacket Color: Brown
• Temperature Rating: 90 deg C
