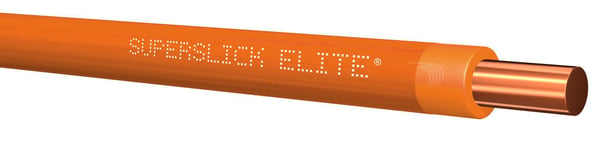

Encore Wire 105100907050 Thhn Wire 10 Awg 600V 1000 Ft Orange

Product Description

The ENCORE WIRE 105100907050 is a THHN building wire rated for 600 volts and 30 amps, built with a solid copper conductor in 10 AWG. It ships in a 1000-foot carton, making it a practical choice for commercial and residential rough-in wiring. The conductor is insulated with PVC and jacketed in nylon, finished in orange for circuit identification. The 90 degrees F temperature rating, combined with resistance to gasoline, heat, moisture, oil, and sunlight, makes it suitable for dry, damp, and select wet locations as permitted by code. Licensed electricians install this wire in conduit runs for branch circuits and feeder applications.

This wire is used in residential, commercial, and light industrial electrical installations. It is pulled through conduit systems — EMT, rigid metal, or PVC raceway — where THHN-rated conductors are required by the NEC. The orange jacket color assists with phase or circuit identification in multi-wire installations, reducing the chance of miswiring during panel termination or service work. The 1000-foot carton length suits longer conduit runs typical of new construction or renovation projects.

Key Features

• Solid copper conductor in 10 AWG for reliable conductivity in branch circuit and feeder wiring
• 600-volt rating supports standard residential and commercial branch circuit applications
• 30-amp ampacity suitable for 30A circuit loads per NEC allowances in conduit
• PVC insulation with nylon jacket provides resistance to gasoline, oil, heat, moisture, and sunlight
• 90 degrees C temperature rating for use in higher-temperature environments
• Orange jacket color aids circuit identification in multi-conductor conduit runs
• 1000-foot carton packaging reduces waste and simplifies inventory management on job sites

Compatibility

Designed for use in THHN-rated conduit wiring applications where 10 AWG solid copper conductors are required by the NEC or local electrical code.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit panel before pulling or terminating any conductors. THHN wire must be installed in a listed conduit or raceway — direct burial without conduit is not a rated application for this wire type. Use a wire-pulling lubricant rated compatible with PVC insulation when pulling through longer conduit runs to avoid jacket damage.

Technical Specifications

• Wire Type: THHN
• Voltage Rating: 600 volts
• Ampacity: 30 amps
• Conductor Size: 10 AWG
• Conductor Type: Solid Copper
• Number of Conductors: 1
• Outside Diameter: 0.149 inches
• Length: 1000 ft
• Insulation Material: PVC
• Jacket Material: Nylon
• Jacket Color: Orange
• Temperature Rating: 90 degrees C
• Resistance: Gasoline, Heat, Moisture, Oil, Sunlight
• Packaging: Carton

Standard Information

• Brand: ENCORE WIRE
• Manufacturer Part Number: 105100907050
