Encore Wire 105100905050 copper thhn 10 solid green

Product Description

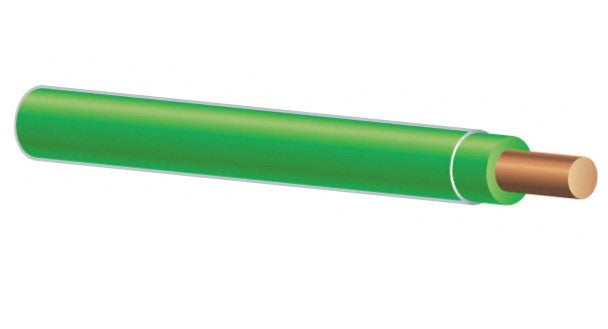

The Encore Wire 105100905050 is a copper THHN solid wire intended for general purpose applications as defined by the National Electrical Code (NEC). It is permitted for new construction or rewiring for 600-volt applications and is appropriate for use in wet or dry locations. The wire features gasoline, heat, moisture, oil, and sunlight resistance.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes are rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3

Product Highlights

This THHN building wire has a PVC insulation with a nylon jacket and is rated for 600V and 30A. It is suitable for use in temperatures up to 90 degrees C.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100905050
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: 1
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758; AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787; Federal Specification A-A-59544; Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658; Institute of Electrical and Electronics Engineers; ARRA 2009; Section 1605 \"Buy American\" Compliant
• Voltage: 600 V
• Amperage: 30 A
• Conductor: Solid Copper Conductor
• AWG: 10 AWG Conductor
• Outside Diameter: 0.149 in
• Length: 1000 ft
• Jacket Color: Green
• Temperature: 90 deg C
