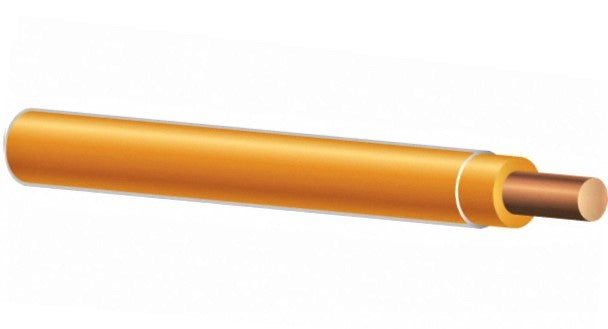

Encore Wire 105100807060 copper THHN 12 solid - orange

Product Description

The Encore Wire 105100807060 is a copper THHN 12 solid wire in orange color. It is intended for general purpose applications as defined by the National Electrical Code (NEC). It is appropriate for use at temperatures not to exceed 105 C in dry locations and permitted for new construction or rewiring for 600-volt applications.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3.

Product Highlights

Solid, orange color THHN wire with a nylon outer jacket for easy pulling and resistance to gasoline and oil.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100807060

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductor Material: Copper
• Wire Gauge: 12 AWG
• Insulation Type: THHN/THWN-2
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758
• AWM Specification: 1316, 1317, 1318, 1319, 1320, 1321
• ASTM Stranding Class: B3
• Federal Specification: A-A-59544
• Canadian Standards Association: C22.2 No. 75
• NEMA: WC70/ICEA S-95-658
• Institute of Electrical and Electronics Engineers: IEEE
