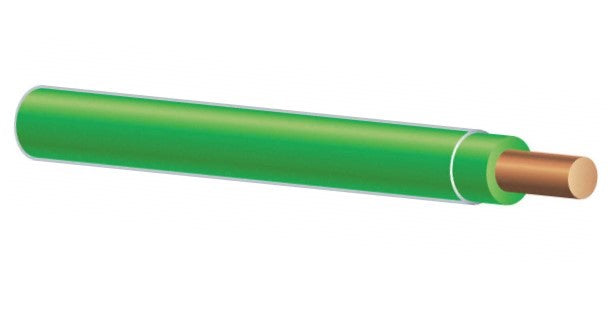

Encore Wire 105100805060 copper thhn 12 solid

Product Description

The Encore Wire 105100805060 is a copper THHN 12 solid wire. It features a slick, nylon outer jacket for easy pulling and is suitable for general purpose applications as defined by the National Electrical Code (NEC). This wire is permitted for new construction or rewiring for 600-volt applications.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes rated gasoline and oil-resistant II.
• Suitable for general purpose applications as defined by the National Electrical Code (NEC).

Product Highlights

This THHN building wire is designed for 600V applications and is suitable for use in both wet and dry locations.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100805060
• Country of Origin: United States

Technical Specifications

• Manufacturer: ENCORE WIRE
• AWG: 12
• Conductor: Solid, uncoated copper conductors per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, ARRA 2009; Section 1605 \"Buy American\" Compliant AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, B8, B787 Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75 NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers
• Voltage: 600 V
• Amperage: 20 A
• Conductors: 1
• Conductor Material: Solid Copper Conductor
• Conductor Size: 12 AWG
• Outer Diameter: 0.12 in
• Length: 2000 ft
• Temperature Rating: 90 deg C
