Encore Wire 105100804060 copper thhn 12 solid - blue

Product Description

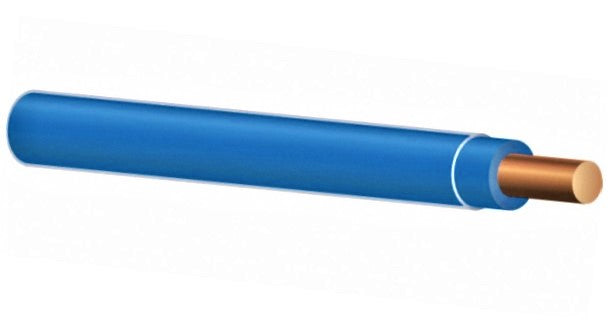

The Encore Wire 105100804060 is a copper THHN 12 solid wire in blue. It is designed for general purpose applications as defined by the National Electrical Code (NEC). Type THHN/THWN-2 is suitable for new construction or rewiring for 600-volt applications. The conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90 C or not to exceed 75 C in oil or coolants.

• Slick, Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG.
• All sizes rated gasoline and oil-resistant II.
• Solid, uncoated copper conductors per ASTM-B3.

Product Highlights

This THHN wire features a Nylon outer jacket for easy pulling and is gasoline and oil-resistant. It's suitable for a variety of applications under NEC guidelines.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100804060

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid, uncoated copper conductors per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83
• Jacket: A tough, polyamide, Nylon outer covering per UL-1063 and UL-83
• Standards: Underwriters Laboratories Standards UL-83, UL-1063, UL-758, ARRA 2009; Section 1605 \"Buy American\" Compliant, AWM Spec 1316, 1317, 1318, 1319, 1320, 1321, ASTM Stranding Class B3, Federal Specification A-A-59544, Canadian Standards Association C22.2 No. 75, NEMA WC70/ICEA S-95-658, Institute of Electrical and Electronics Engineers
