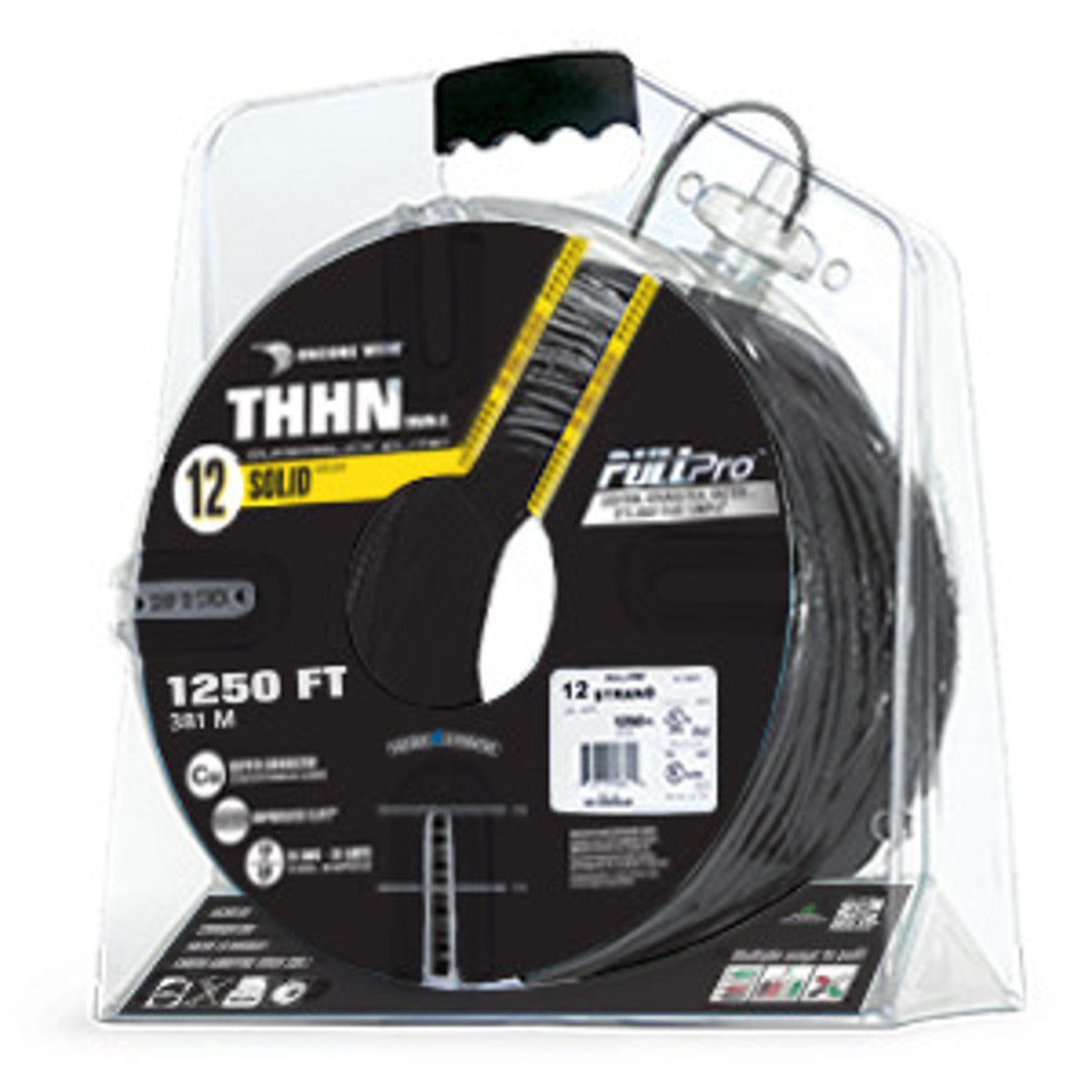

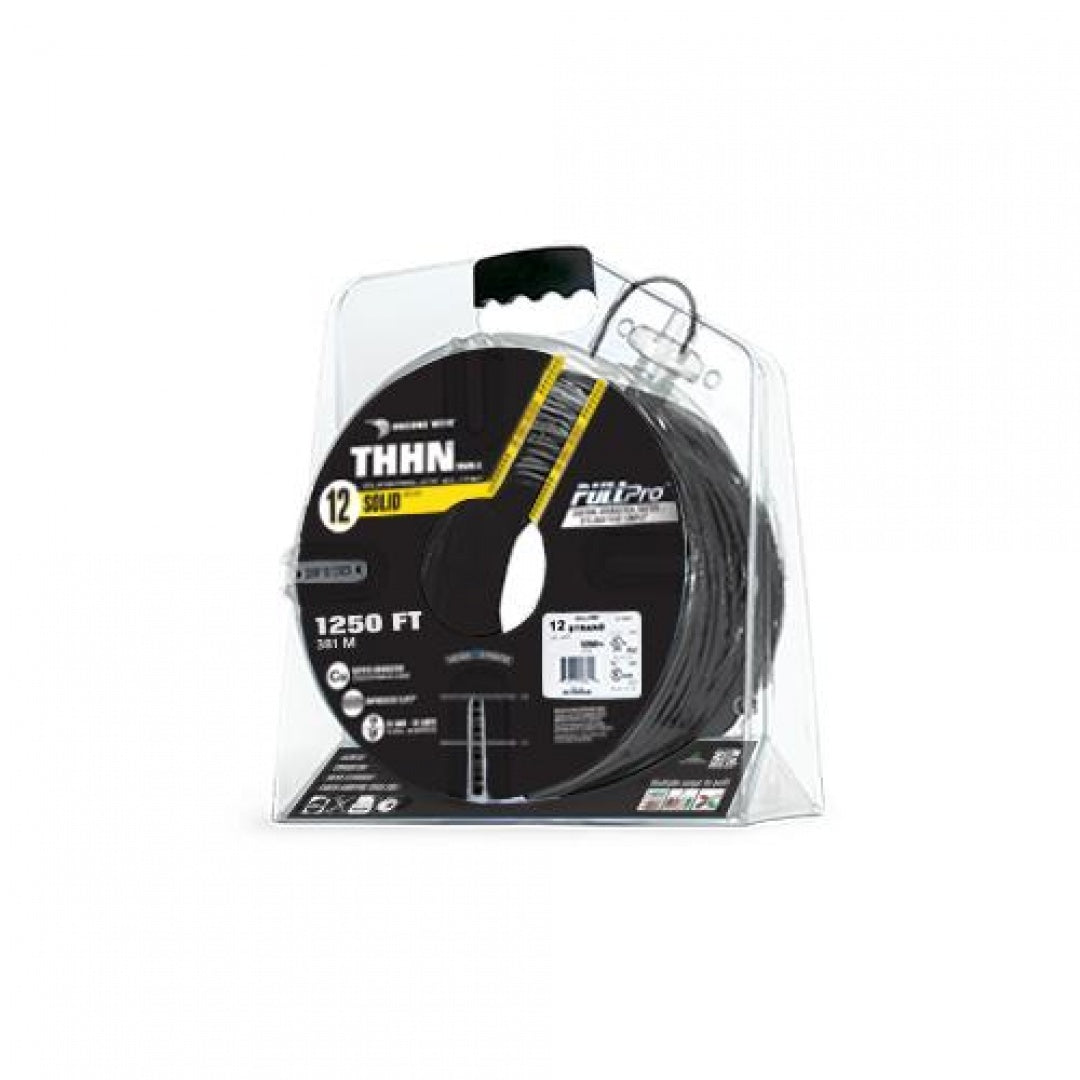

Encore Wire 105100801055 PullPro Copper THHN Wire, 12 AWG, Solid, 1250 ft (2pk)

Product Description

The Encore Wire 105100801055 PullPro Copper THHN Wire is a 12 AWG solid conductor wire. This THHN-2 building wire is designed for general purpose, new construction, or rewiring applications up to 600 VAC. The unique coil pattern allows for tangle-free pulls, and the shrink-wrapped inner coil allows for pulling with or without the case.

• Tangle-free and memory-free pull due to unique coil pattern.
• Stackable cases for a solid, steady multi-conductor pull.
• Shrink-wrapped inner coil protects wire and allows for pulling with or without the case.

Product Highlights

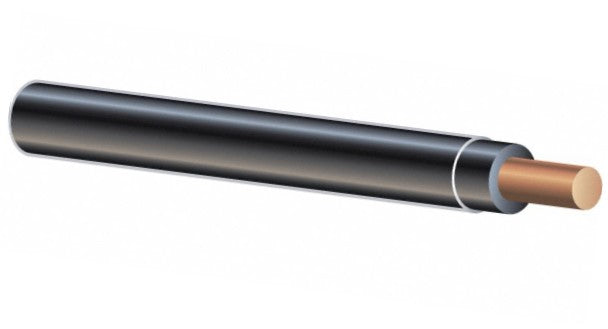

Features a solid copper conductor, PVC insulation, and a polyamide jacket. UL Listed, CSA Certified, and RoHS Compliant.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 105100801055
• Country of Origin: United States

Technical Specifications

• Catalog Number: 105100801055
• Manufacturer: Encore Wire
• Brand: ENCORE WIRE
• Country of Origin: United States
• Made in USA: Yes
• Color: Black
• Conductor Material: Copper
• Conductor Size: 12 AWG
• Number of Conductors: 1
• Stranding: Solid
• UPC: 739373982964
• GTIN: 50739373982969
• Application: For general purpose, new construction or rewiring for 600 VAC applications
• Conductor Type: Solid Copper
• Includes: Stackable cases
• Insulation Material: PVC
• Jacket Material: Polyamide
• Length: 2500 ft
• Mfg Standards/Approvals: UL Listed, CSA Certified and RoHS Compliant
• Outside Diameter: 0.128 in
• Series: PullPro
• Strands: 1
• Temperature Rating: 90 deg C
• Type: THHN-2
• Voltage Rating: 600 V
