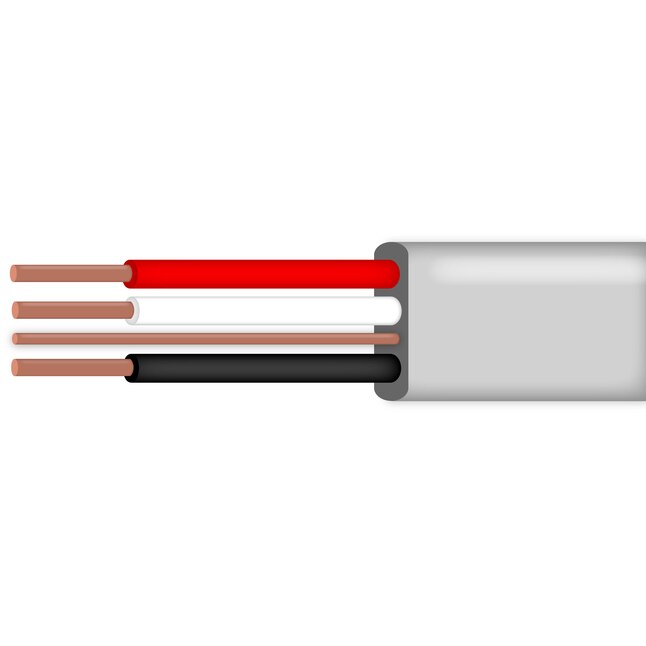

Encore Wire 102311000040 8/3G AWG UF Cable 500 feet EZ Pkg

Product Description

The Encore Wire 102311000040 is an 8/3G AWG UF cable with a 0.045" jacket thickness and comes in a 500' EZ package. It features solid 14-10 AWG soft, uncoated copper conductors and stranded 8 AWG conductors. The cable is suitable for direct burial and exposure to sunlight, with a maximum voltage rating of 600 volts.

• Features solid 14-10 AWG soft, uncoated copper conductors per ASTM-B3; stranded 8 AWG conductor and larger uncoated per ASTM-B8.
• Insulated with color-coded Polyvinyl Chloride (PVC) compound, heat-stabilized Nylon rated for 90 C in dry or 75 C in wet locations.
• Compliant with Underwriters Laboratories Standards UL-83, UL-493, Federal Specification A-A-59544, ASTM-B3 and B8.

Product Highlights

This UF-B cable is designed for underground feeder and interior wiring in wet, dry, or corrosive conditions. It can withstand temperatures up to 90 degrees Celsius.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 102311000040
• Country of Origin: USA

Technical Specifications

• AWG: 8/3G
• Cable Type: UF
• Jacket Thickness: 0.045"
• Length: 500'
• Conductor Material: Copper
• Conductor Size: 8
• Number Of Conductors: 3
• RoHS Compliance: Yes
