Encore Wire 101311200040 copper romax 6/3wg 500 feet Reel

Product Description

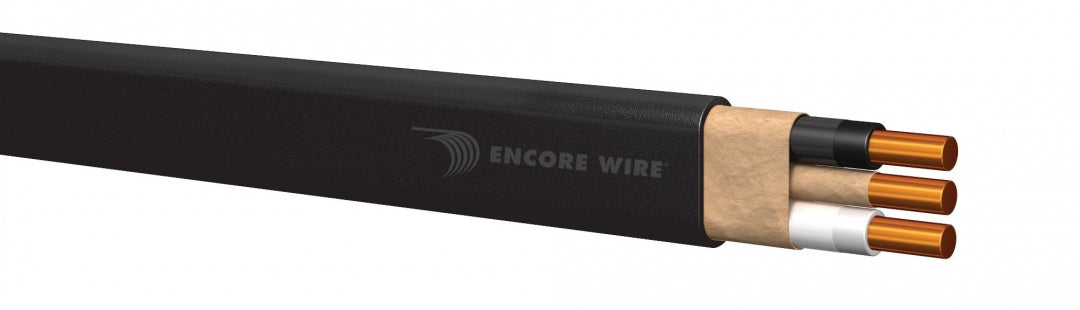

Encore Wire 101311200040 is a Copper Romax 6/3WG (500' REEL). Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90 C. Type NM-B is rated for 600 volts for both exposed and concealed work in normally dry locations.

• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3.
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations.
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8.

Product Highlights

The Encore Wire Copper Romax 6/3WG is suitable for residential applications, switches, and loads up to 90C, with a 600V rating for dry locations.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101311200040

Technical Specifications

• Manufacturer: ENCORE WIRE
• Type: NM
• Assembly: Jacket: A 30-mil, color-coded.
• Standards: Underwriters Laboratories Standards UL-83. UL-719, Federal Specification A-A-59544. ASTM-B3 and B8, ARRA 2009. Section 1605 Buy American Compliant.
