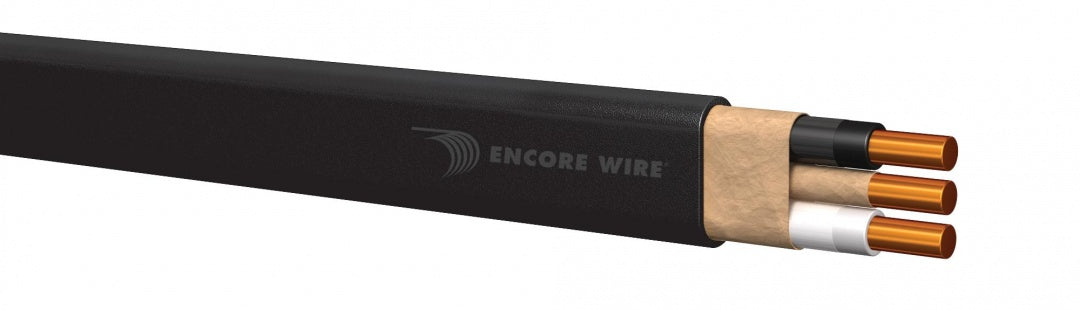

Encore Wire 101311200020 copper romax 6/3wg (125 feet coil)

Product Description

Encore Wire 101311200020 is a Copper Romax 6/3wg with a 125' coil. Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90 C. It is rated for 600 volts for both exposed and concealed work in normally dry locations. It may be installed or fished in air voids and joints and in masonry block or tile walls where such walls are not exposed to excessive moisture or dampness.

• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3.
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations.
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8.

Product Highlights

Copper Romax 6/3wg with a 125' coil for residential fixtures, switches, and loads.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101311200020

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8
• Standards: Underwriters Laboratories Standards UL-83, UL-719, Federal Specification A-A-59544, ASTM-B3 and B8, ARRA 2009, Section 1605 Buy American Compliant
