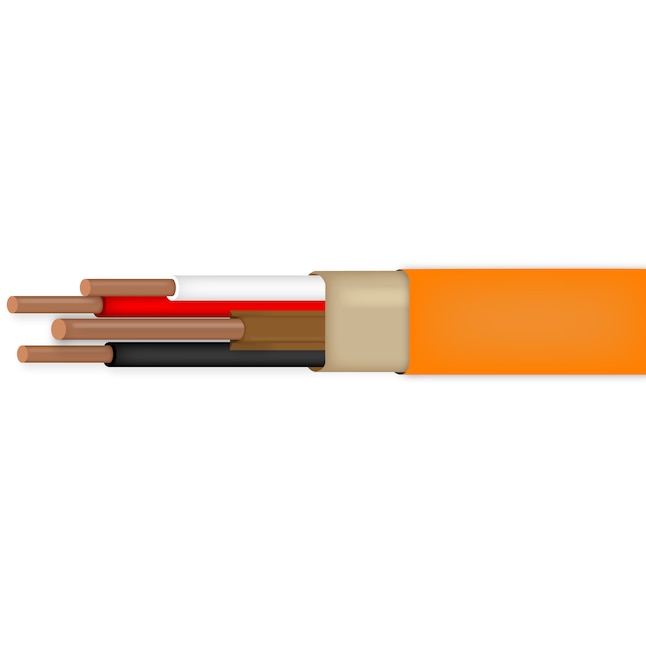

Encore Wire 101310900040 10/3G AWG Wire NM-B 500 feet Reel

Product Description

The Encore Wire 101310900040 is a Type NM-B (non-metallic sheathed cable) with a broad range of usage as defined in Article 334 of the National Electrical Code (NEC). Commonly used for residential fixtures, switches, and loads rated for at least 90 C. It is rated for 600 volts for both exposed and concealed work in normally dry locations.

• Features solid 14-10 AWG soft, uncoated copper conductors, per ASTM-B3.
• Insulated with color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations.
• Suitable for installation or fishing in air voids and joints and in masonry block or tile walls where such walls are not exposed to excessive moisture or dampness.

Product Highlights

This Encore Wire NM-B cable is ideal for residential applications requiring a 600V rating in dry locations. Compliant with UL-83 and UL-719 standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101310900040

Technical Specifications

• Conductor Material: Soft, uncoated copper
• AWG: 10/3G
• Standards: Underwriters Laboratories Standards UL-83, UL-719, Federal Specification A-A-59544, ASTM-B3 and B8, ARRA 2009, Section 1605 Buy American Compliant
• Voltage: 600 V
• Application: Residential fixtures, switches, and loads
• Operating Temperature: 90 C (dry locations)
