Encore Wire 101211200020 copper romax 6/2wg (125 feet coil)

Product Description

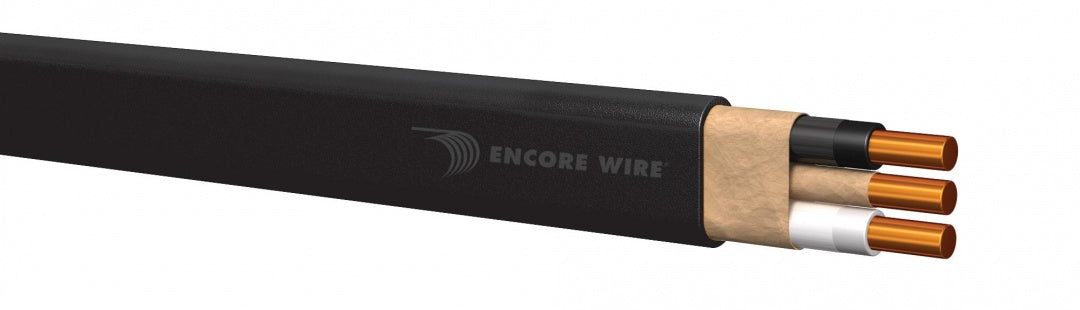

Encore Wire 101211200020 is a Copper Romax 6/2WG NM-B cable with a 125' coil. Type NM-B cable is commonly used for residential fixtures, switches, and loads rated for at least 90 C. It is rated for 600 volts for both exposed and concealed work in normally dry locations.

• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3.
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations.
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8.

Product Highlights

Copper Romax NM-B cable suitable for residential applications, rated for 600V and dry locations.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101211200020

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8
• Standards: Underwriters Laboratories Standards UL-83, UL-719, Federal Specification A-A-59544, ASTM-B3 and B8, ARRA 2009, Section 1605 Buy American Compliant
