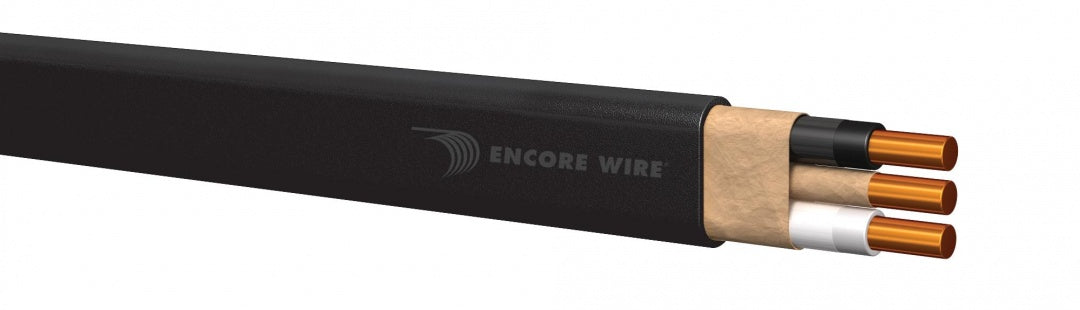

Encore Wire 101211000020 copper romax 8/2wg (125 feet coil)

Product Description

The Encore Wire 101211000020 is a Copper Romax 8/2WG, supplied as a 125' coil. This Type NM-B (Non-metallic sheathed cable) is suitable for residential fixtures, switches, and loads rated for at least 90 C. It is rated for 600 volts for both exposed and concealed work in normally dry locations. It can be installed in air voids and joints and in masonry block or tile walls.

• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3.
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations.
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8.

Product Highlights

The Encore Wire Copper Romax is ideal for residential applications requiring non-metallic sheathed cable. Compliant with UL-83 and UL-719 standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101211000020

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8
• Assembly: Jacket: A 30-mil, color-coded. 14 AWG White PVC jacket is applied over the completed assembly
• Standards: Underwriters Laboratories Standards UL-83, UL-719, Federal Specification A-A-59544, ASTM-B3 and B8, ARRA 2009, Section 1605 Buy American Compliant
