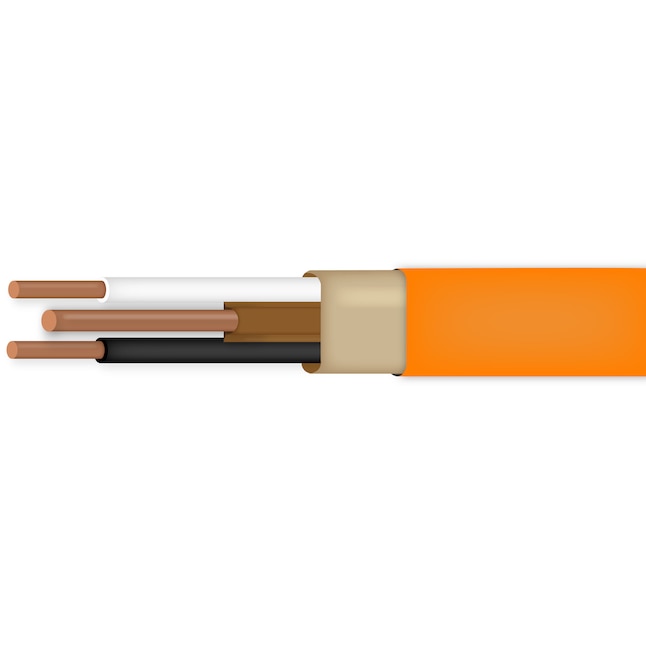

Encore Wire 101210900050 Copper Romax 10/2wg 1000 feet Reel

Product Description

The Encore Wire 101210900050 is a Copper Romax 10/2WG, supplied on a 1000' reel. This Type NM-B (Non-metallic sheathed cable) is suitable for residential fixtures, switches, and loads rated for at least 90 C. It is rated for 600 volts for both exposed and concealed work in normally dry locations.

• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8

Product Highlights

Copper Romax 10/2WG NM-B wire on a 1000' reel, designed for residential electrical applications.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101210900050

Technical Specifications

• Manufacturer: ENCORE WIRE
• Conductors: Solid 14-10 AWG soft, uncoated copper, per ASTM-B3
• Insulation: Color-coded Polyvinyl Chloride (PVC) compound meeting the required thickness of Type THHN with a heat-stabilized Nylon jacket rated for 90 C in dry locations
• Grounding Conductor: Soft, uncoated copper per ASTM-B3 and/or ASTM-B8
• Assembly: Jacket: A 30-mil, color-coded.
• Jacket: 14 AWG White PVC jacket is applied over the completed assembly.
• Standards: Underwriters Laboratories Standards UL-83. UL-719, Federal Specification A-A-59544. ASTM-B3 and B8, ARRA 2009. Section 1605 Buy American Compliant.
