Encore Wire 101210800030 Copper Romax 12/2WG (250 feet Coil)

Product Description

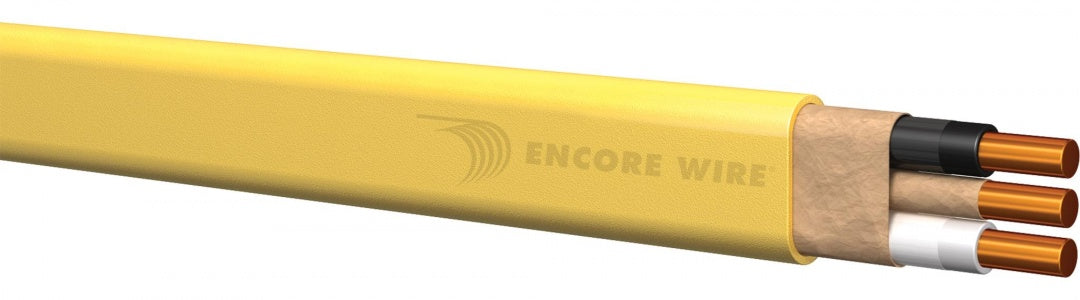

The Encore Wire 101210800030 is a Non-Metallic Sheathed Cable, Type NM-B, featuring EZ Pack Packaging. Rated at 600 VAC and 20 A, it includes 3 conductors with a solid ground copper conductor of 12 AWG. The cable has an OD of 0.16 x 0.45 inches and a length of 250 ft, with PVC insulation and a yellow PVC jacket. Suitable for residential wiring of luminaries, devices, and appliances.

• Color code polyvinyl chloride compound meeting the required thickness or type THHN or THWN-2 with a heat stabilized nylon jacket rated for 90 deg C is dry locations
• Solid 14 to 10 AWG soft, uncoated copper conductor per ASTM-B3
• Soft, uncoated copper grounding conductor per ASTM-B3 or ASTM-B8

Product Highlights

Type NM-B cable with PVC jacket, ideal for residential wiring applications. Compliant with RoHS, REACH, and Buy American Act standards.

Product Information

Standard Information

• Brand: Encore Wire
• Manufacturer Part Number: 101210800030
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 20 A
• Conductor Size: 12 AWG
• Conductor Type: Solid Ground Copper
• Insulation Material: PVC
• Jacket Color: Yellow
• Jacket Material: PVC
• Length: 250 ft
• Number of Conductors: 3
• Outside Diameter: 0.16 x 0.45 in
• Packaging Type: EZ Pack
• Temperature Rating: 90 deg C
• Type: Type NM-B
• Voltage Rating: 600 VAC
• Country of Origin: USA
• Mfg Standards/Approvals: UL File E-123775, NEMA RV 2-2011, Reach, RoHS Compliant
