Product Description

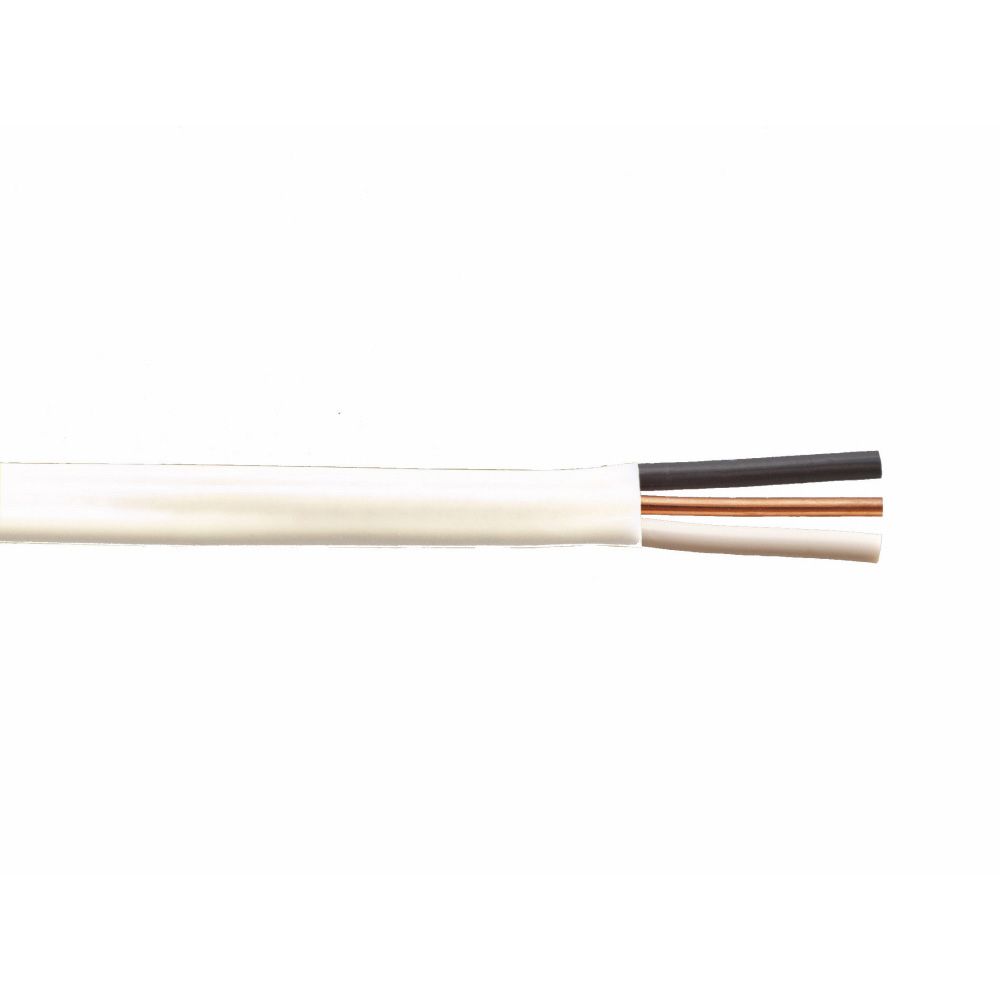

The Encore Wire 101210700030 is a non-metallic sheathed cable, type NM-B, featuring EZ Pack packaging. This 600 VAC cable has a 15 A amperage rating and includes 3 conductors with a solid ground copper conductor of 14 AWG. It is designed for residential wiring of luminaries, devices, and appliances.
- Features a color code polyvinyl chloride compound meeting the required thickness or type THHN or THWN-2 with a heat stabilized nylon jacket rated for 90 deg C in dry locations
- Includes a solid 14 to 10 AWG soft, uncoated copper conductor per ASTM-B3
- Has a 30 mil, color coded, flame retardant and moisture resistant PVC jacket applied over the completed assembly
Product Highlights
This Encore Wire cable is RoHS and REACH compliant and adheres to UL File No.E-123775 and NEMA RV 2-2011 standards.
Product Information
Standard Information
-
Brand: Encore Wire
-
Manufacturer Part Number: 101210700030
-
Country of Origin: USA
Technical Specifications
-
Amperage Rating: 15 A
-
Conductor Size: 14 AWG
-
Conductor Type: Solid Ground Copper
-
Insulation Material: PVC
-
Jacket Color: White
-
Jacket Material: PVC
-
Length: 250 ft
-
Number of Conductors: 3
-
Outside Diameter: 0.17 x 0.39 in
-
Packaging Type: EZ Pack
-
Temperature Rating: 90 deg C
-
Type: Type NM-B
-
Voltage Rating: 600 VAC
-
Manufacturer: ENCORE WIRE
-
Application: RESIDENTIAL
-
Conductor Material: Copper
-
Standard: UL
