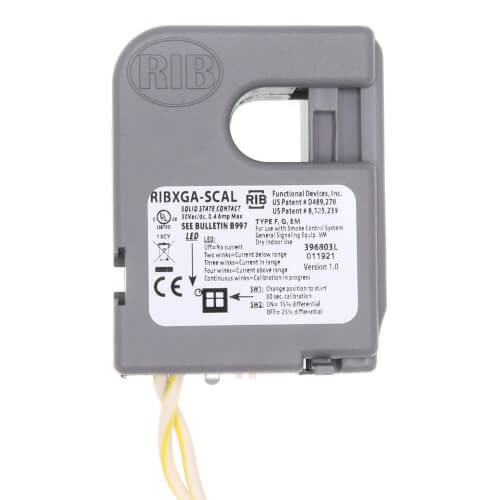

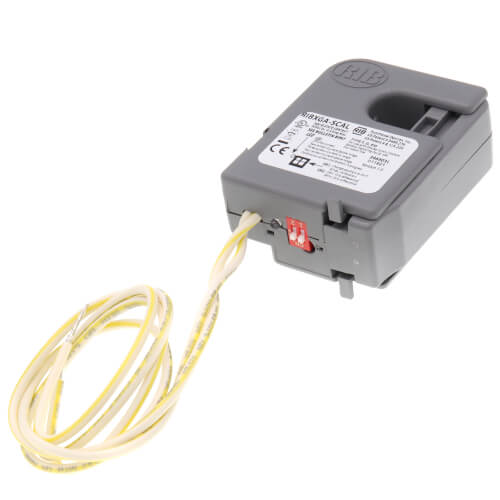

Functional Devices RIBXGA-SCAL Current Switch Split Core Self-Adjustable 3-150 Amp Wire Leads

Product Description

The Functional Devices RIBXGA-SCAL Current Switch uses split-core technology for easy installation and a self-adjusting feature to measure current from 3 to 150 amps. It boasts wire leads for easy connections, eliminating the need for disconnection during installation.

• Split-core design for easy installation
• Current range from 3 to 150 amps
• Wire leads for seamless connections

Product Highlights

This current switch by Functional Devices, model RIBXGA-SCAL, is designed for accurate current measurement in various industrial applications. The split-core design simplifies installation by eliminating the need to disconnect existing wiring. With the extended current range and wire leads, it meets diverse power monitoring and energy management needs.

Product Information

Standard Information

• Brand: RIB RELAYS
• Item Number: RIBXGA-SCAL

Technical Specifications

• Operating Temperature: -30 to 140°F
• Humidity Range: 5% to 95% (non-condensing)
• Max Sense Voltage: 600 Vac
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS

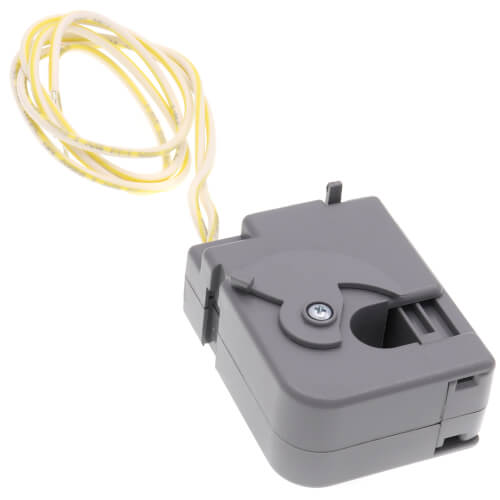

• Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
• Sensor Contact Status: Current below threshold: Open / Current above threshold: Closed
• Solid State Contact: When sensor contact is off (open), leakage < 30 uA @ 30Vac/dc; When sensor contact is on (closed), voltage drop < .3 Vac/dc @ .1 Amp, < 1.6 Vac/dc @ .4 Amp
