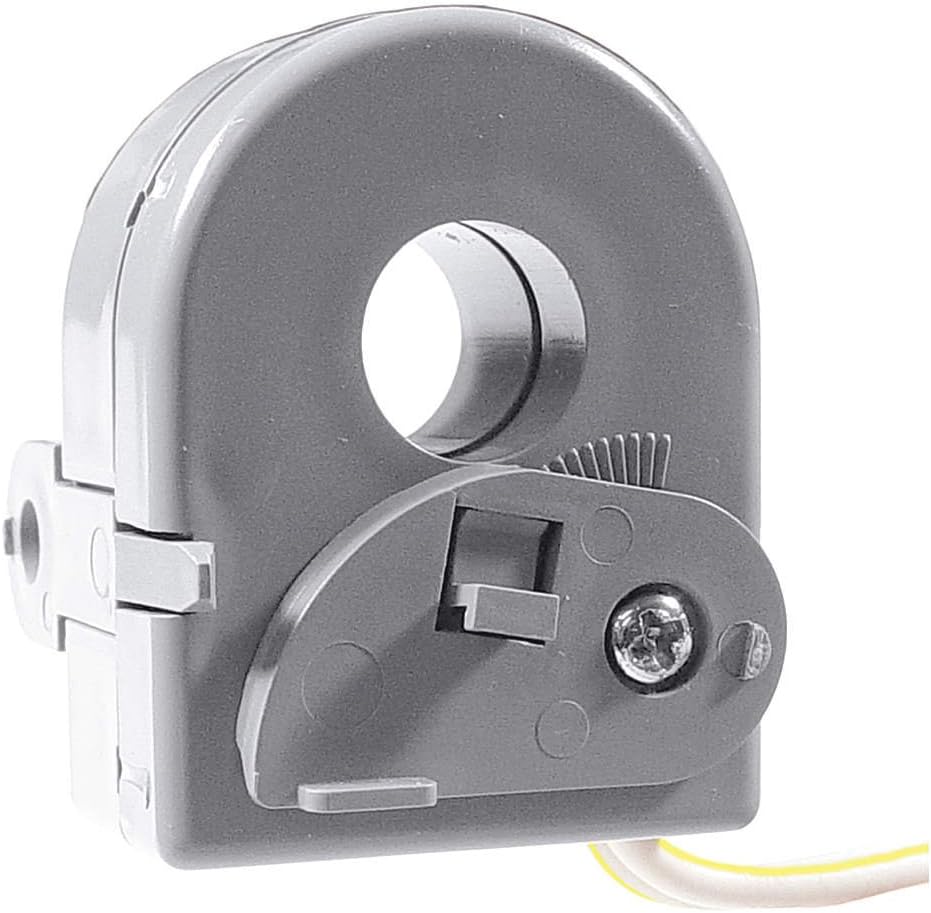

Functional Devices RIBXKF Relay Functional Devices 0.25-150amp Current Sensor

Product Description

The Functional Devices RIBXKF Current Sensor accurately monitors current ranging from 0.25 to 150 Amps. It is designed to detect abnormalities such as locked rotors, current loss, and open heaters.

• Extended current measurement range: 0.25-150 Amps
• Compact and easy to install
• High accuracy and linearity

Product Highlights

An indispensable tool for industrial applications, this current sensor ensures precise readings even in harsh environments.

Product Information

Standard Information

• Brand: Functional Devices
• MPN: RIBXKF

Technical Specifications

• Item - Relay: Current Sensing Relay
• Input Voltage: 30V AC/DC
• AC Contact Rating - Relay: 0.40A @ 30V
• DC Contact Rating - Relay: 0.40A @ 30V
• Mounting Style: Surface
• Core Type: Solid
• Sensing Amp Range: 0.25 to 150.00A
• Trip Point: Fixed 0.25A
• Trip Delay: Less than 1 sec
• Sensor Opening: 0.50 inches
• Max. Inrush Current: 4.0A
• Body Height - Relay: 1.5 inches
• Body Width - Relay: 1.46 inches
• Body Depth - Relay: 2.05 inches
• Contact Form - Relay: SPST-NO
• Electrical Connection: 16 Wire Leads
• Status Indicator: None
