Emuge L0100100.5619 Plug Thread Gage 3/8-16 Sti 2B

Product Description

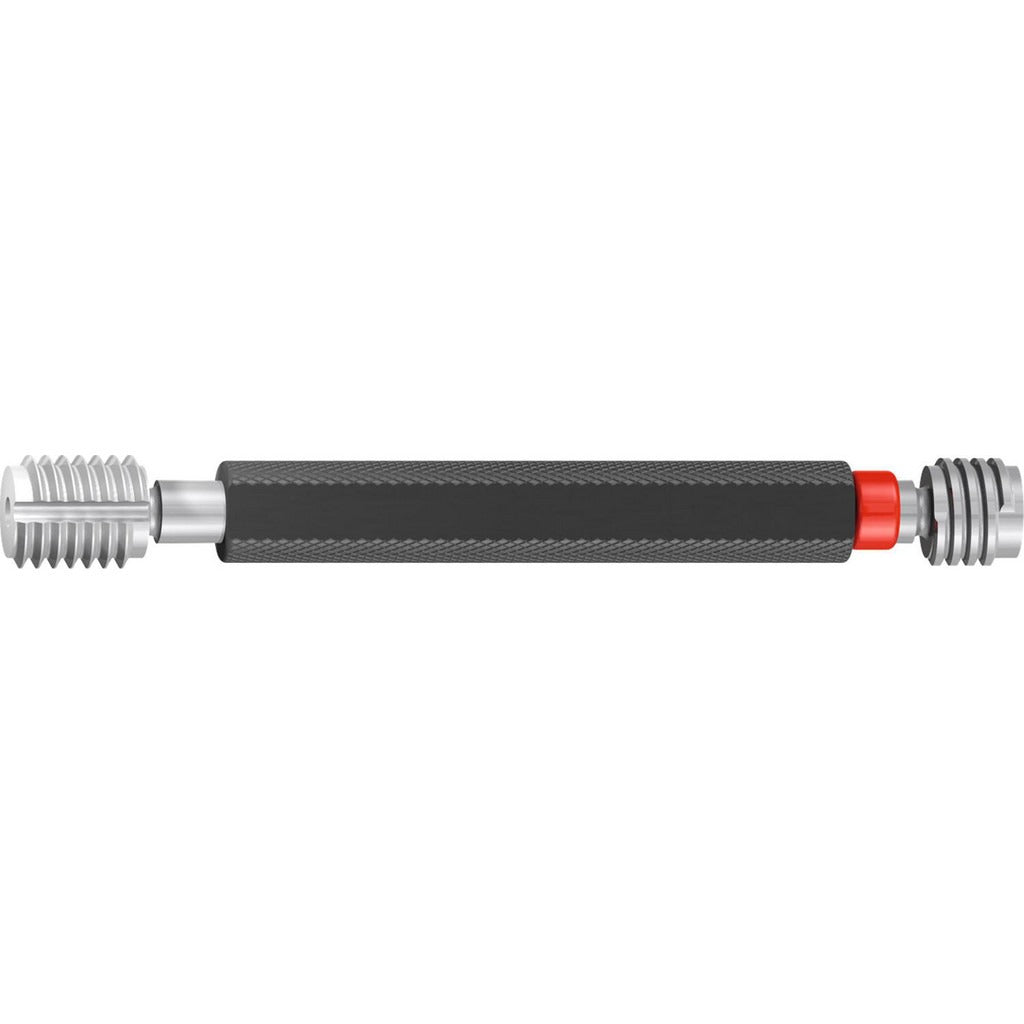

The EMUGE L0100100.5619 is a double-end plug thread gage designed to inspect 3/8-16 STI (Screw Thread Insert) threads to ASME B1.2 standards. One end carries the Go member and the other carries the No Go member, allowing a technician to verify both the minimum and maximum thread tolerance limits in a single tool. Manufactured from tool steel with a bright, uncoated finish, this gage is built for dimensional stability under repeated shop use. A short-form certification is included with each unit. The gage meets Class 2B tolerance classification and is intended for right-hand thread inspection.

This plug gage is used wherever STI threaded inserts are installed and the resulting internal thread must be verified before assembly. Typical applications include aerospace, automotive, and general machining environments where tapped holes receive helical coil inserts to restore or reinforce thread integrity. Machinists, quality-control inspectors, and toolroom technicians use this gage as part of a post-tap or post-insert inspection routine. The handle is included, and the design is compatible with standard Handle Size 0 configurations.

Key Features

• Double-end design with Go and No Go members on a single gage body
• Inspects 3/8-16 STI internal threads per ASME B1.2
• Tool steel construction for dimensional stability and wear resistance
• Bright, uncoated finish for visual clarity and corrosion resistance in typical shop environments
• Handle included - no separate purchase required
• Short-form certification included for quality documentation

Compatibility

Designed for inspection of 3/8-16 STI internal threads classified at 2B tolerance, right-hand direction, following ASME B1.2 standards.

Installation Notes

Thread plug gages are inspection instruments and should be handled by qualified metrology or toolroom personnel. Keep the gage clean and lightly oiled when not in use to prevent corrosion. Do not force the Go end - if it does not pass with hand pressure, the thread does not meet specification. Store separately from cutting tools to avoid contact damage to the gage members.
