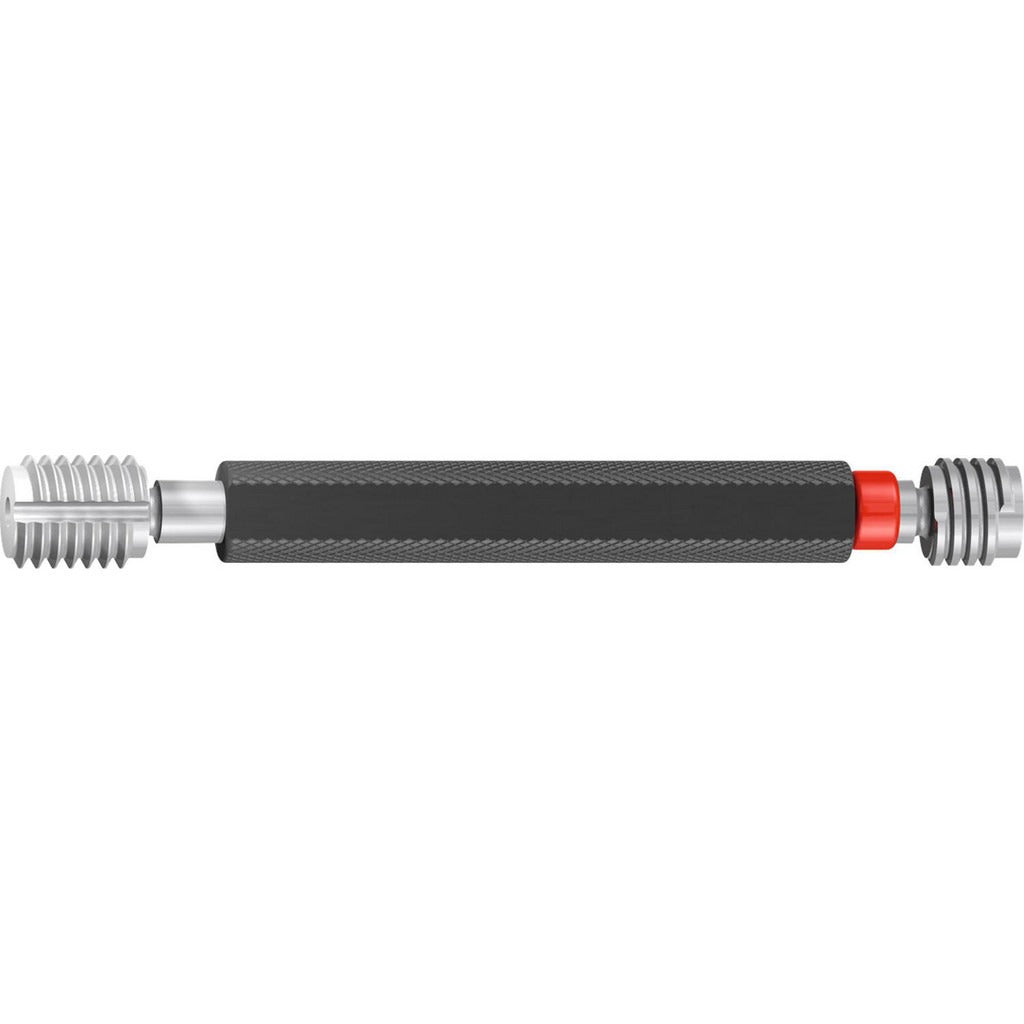

Emuge L0100100.5013 Plug Thread Gage 1/2-13 2B Double End

Product Description

The EMUGE L0100100.5013 is a double-end plug thread gage designed to verify internal thread conformance to the 1/2-13 thread size at 2B class tolerance. One end carries the Go member; the opposite end carries the No Go member. The gage is manufactured from tool steel with a bright finish and is used to confirm that tapped holes fall within the specified thread tolerance range. A handle is included, and a short-form certification ships with each unit. This tool is used by machinists, quality inspectors, and tool room personnel in production and inspection environments where ASME B1.2 thread standards are required.

The L0100100.5013 is suited for inspecting 1/2-13 UNC tapped holes in manufacturing, machining, and mechanical assembly settings. It is appropriate for both job-shop inspection and production floor go/no-go verification. The double-end configuration eliminates the need for two separate gages, allowing the inspector to check both the minimum and maximum thread tolerance conditions with a single tool. Residential and light commercial mechanical trades as well as heavy industrial shops will find this gage applicable wherever 1/2-13 internally threaded features require dimensional verification.

Key Features

• Double-end design with Go and No Go members on a single gage body
• Conforms to ASME B1.2 thread gage standards for 2B class tolerance
• Tool steel construction with bright finish for durability and corrosion resistance
• Handle included for secure grip during inspection
• Short-form certification included for quality documentation and traceability
• Lightweight at 0.26 pounds for easy single-hand use

Compatibility

Designed for inspection of 1/2-13 UNC internally threaded features classified to 2B tolerance per ASME B1.2.

Installation Notes

Thread gages require no installation but should be handled carefully to avoid damage to the threaded members. Store the gage in its protective case when not in use and keep it clean and free of chips or cutting fluid. Periodic calibration against certified master gages is recommended to maintain measurement integrity. Inspection should be performed by qualified personnel familiar with ASME B1.2 go/no-go acceptance criteria.
