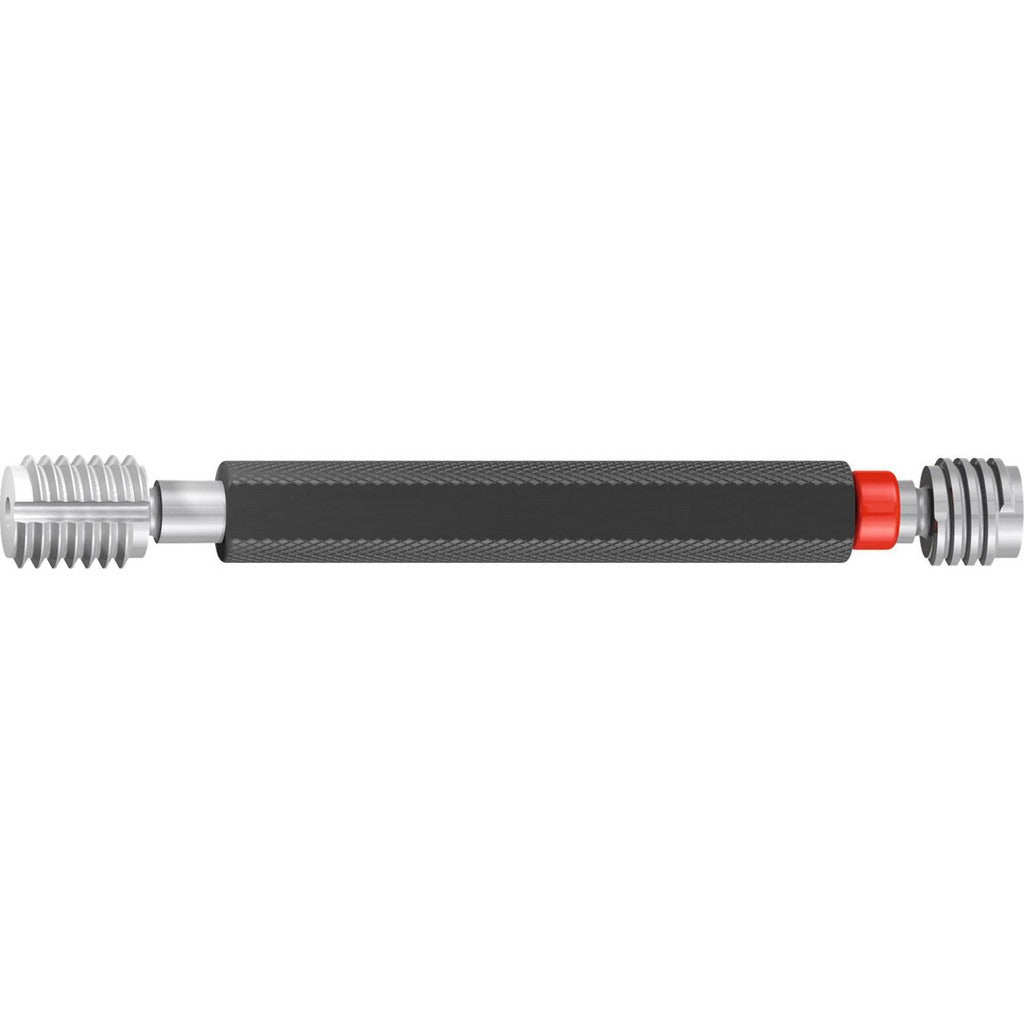

Emuge L0100100.4037 Pipe Thread Plug Gage 3/8-19 Bsp

Product Description

The EMUGE L0100100.4037 is a straight pipe thread plug gage designed to verify BSP (British Standard Pipe) internal thread forms to DIN ISO 228-2 tolerances. Built from tool steel, this double-end gage provides two functional ends in a single instrument, allowing inspection of both go and no-go conditions without changing tools. At 4 inches overall length and 0.26 pounds, it is sized for practical bench and field use. A short form certification is included, supporting quality documentation requirements in production and inspection environments. Licensed HVAC, plumbing, and pipefitting professionals use this gage to confirm thread integrity before assembly on BSP-threaded fittings and connections.

This gage is suited for inspection of 3/8-19 BSP straight internal threads found in plumbing, fluid power, and instrumentation applications. The straight thread form distinguishes BSP parallel threads from tapered NPT threads, making proper gage selection critical. Typical use occurs during incoming inspection, in-process quality checks, or final verification of threaded ports and fittings in residential and commercial plumbing and mechanical systems. The included short form certification supports traceability requirements in regulated manufacturing and service environments.

Key Features

• Double-end design provides go and no-go inspection in a single tool
• Straight BSP thread form per DIN ISO 228-2 standard
• Tool steel construction for durability and dimensional stability
• 3/8-19 thread size for BSP parallel pipe thread inspection
• Short form certification included for quality documentation
• Compact 4-inch overall length at 0.26 pounds for easy handling

Compatibility

Designed for inspection of 3/8-19 BSP straight pipe threads conforming to DIN ISO 228-2. Compatible with threaded components specifying BSP parallel thread forms at this size designation.

Installation Notes

This is a precision inspection instrument, not a fastener or fitting. Handle with care to avoid dropping or contact with abrasive surfaces that could alter the thread form. Clean threads thoroughly before gaging to prevent debris from causing false readings. Store in a protective case when not in use to maintain calibration integrity. Calibration interval should follow your facility quality management plan or applicable metrology standards.
