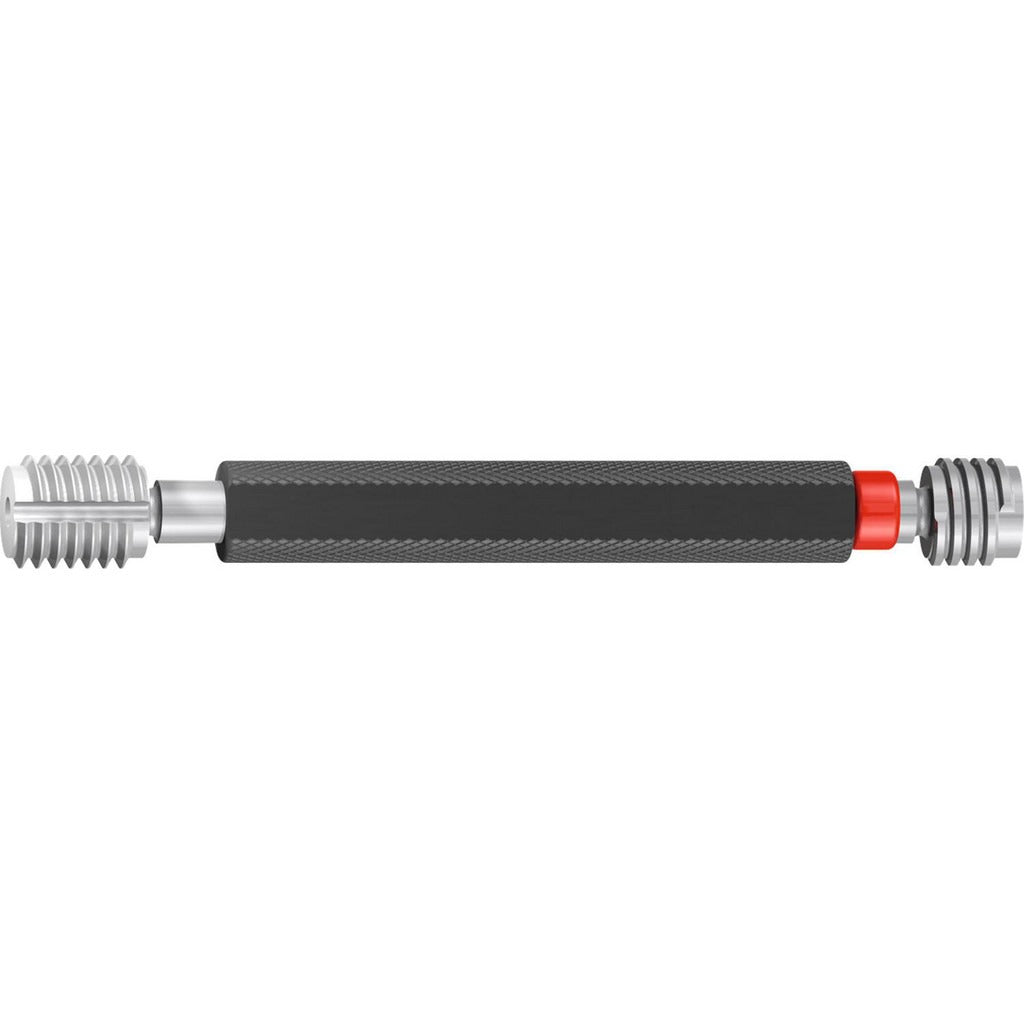

Emuge L0100100.4036 Pipe Thread Plug Gage 1/4-19 Bsp

Product Description

The EMUGE L0100100.4036 is a straight pipe thread plug gage used to verify internal BSP (British Standard Pipe) thread dimensions to DIN ISO 228-2. Machined from tool steel, this double-end gage checks 1/4-19 straight pipe threads with a go end and a no-go end on a single 4-inch body. It ships with a short form certification document confirming traceability. Machinists, pipe fitters, and quality technicians use this gage in production and inspection environments where BSP thread conformance must be confirmed before assembly.

This gage is suited for shops and service operations that work with BSP straight-thread fittings common in hydraulic, pneumatic, and fluid conveyance systems. The 1/4-19 designation indicates a 1/4-inch nominal bore with 19 threads per inch. Both the go and no-go ends are on a single tool, reducing changeover time during thread inspection routines on the bench or at the machine.

Key Features

• Straight BSP thread form - 1/4-19 per DIN ISO 228-2
• Double-end design: go and no-go ends on one 4-inch tool steel body
• Tool steel construction for wear resistance in repeated gauging use
• Short form certification included for quality records and traceability
• Conforms to DIN ISO 228-2 standard for straight pipe threads

Compatibility

Designed to inspect 1/4-19 straight BSP internal threads conforming to DIN ISO 228-2 in fittings, valves, manifolds, and other components threaded to that standard.

Installation Notes

Thread plug gages are inspection tools, not cutting tools - do not force the gage into a threaded bore. Handle and store in a clean, dry environment to prevent corrosion and dimensional drift. Calibrate or re-certify the gage at intervals consistent with your quality management system requirements. Use only by personnel trained in thread gage inspection procedures.
