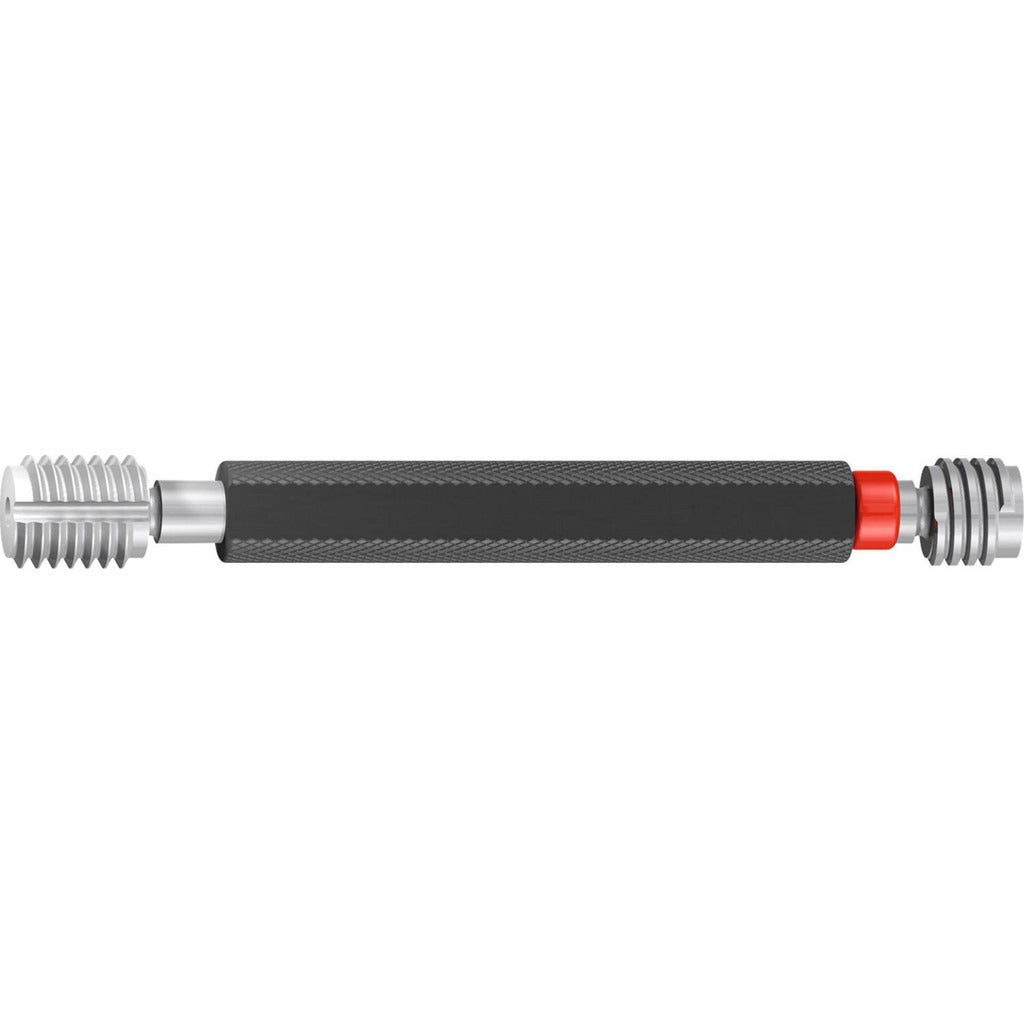

Emuge L0100100.0100 Plug Thread Gage M10x1.5 6H

Product Description

The EMUGE L0100100.0100 is a double-end plug thread gage designed to verify M10x1.5 internal threads to the 6H tolerance class. One end checks the Go condition, confirming the thread will accept a mating fastener; the opposite end checks the No Go condition, confirming the thread has not been cut oversized. Built from tool steel with a bright finish, this gage delivers consistent, repeatable results in production and inspection environments. A handle is included, and a short-form certification ships with each unit. Machinists, quality technicians, and thread inspection personnel are the primary users.

This gage is suited for incoming inspection, in-process quality checks, and final verification of M10x1.5 tapped holes in manufacturing, machining, and assembly operations. It is applicable in both job-shop and high-volume production settings where 6H thread conformance must be confirmed before parts move to the next stage. The double-end design consolidates Go and No Go checks into a single tool, reducing bench clutter and inspection time.

Key Features

• Double-end design combines Go and No Go checks in one tool
• M10x1.5 thread size with 6H tolerance class per DIN ISO 1502
• Tool steel construction for hardness and wear resistance
• Bright finish for easy visual inspection of the gage surface
• Handle included - ready to use out of the package
• Short-form certification included for quality documentation

Compatibility

Designed for verification of M10x1.5 internal threads conforming to the 6H tolerance class per DIN ISO 1502.

Installation Notes

Plug thread gages are used by quality technicians and machinists - no installation in a system is required. Before use, clean the tapped hole and gage threads to remove chips, coolant, and debris that could affect readings. Apply light gage oil if recommended by your inspection procedure. Handle the gage carefully to avoid drops or impacts that can alter calibration; re-calibrate or replace if the gage is damaged or shows wear.
