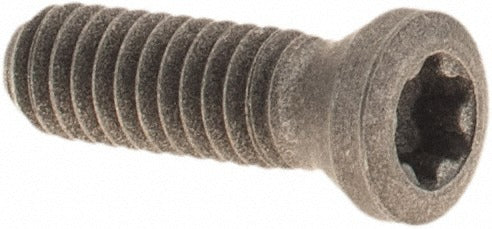

Emuge GZ349011 Indexable Insert Screw Torx Drive

Product Description

The EMUGE GZ349011 is a Torx drive insert screw designed for securing indexable cutting inserts in milling, turning, and boring tooling systems. The countersunk head profile seats flush against the insert pocket, and the flat point provides consistent clamping force without damaging the insert seating surface. At 0.002 pounds, this is a precision fastener intended for repeated tool changes in production environments. Licensed machinists, tooling technicians, and CNC setup personnel are the typical users.

Insert screws are a consumable component in indexable tooling assemblies. When an insert screw is stripped, cross-threaded, or lost during an insert change, the entire tool holder is sidelined until a replacement is installed. The GZ349011 is suited for use in shop environments running indexable face mills, end mills, turning tools, and boring bars that require a Torx drive fastener with a countersunk head and flat point geometry.

Key Features

• Torx drive reduces cam-out risk during insert clamping and removal
• Countersunk head seats flush in the insert pocket recess
• Flat point prevents damage to the insert pocket floor on tightening
• Lightweight precision fastener at 0.002 pounds per unit
• Minimum order quantity of 10 units supports keeping bench stock on hand

Compatibility

Designed as a replacement insert screw for indexable tooling holders requiring a Torx drive countersunk head flat point fastener. Verify thread size and screw length against the original tool holder specification before ordering.

Installation Notes

Insert screws should be installed using a calibrated Torx key or driver sized to the fastener to avoid rounding the drive recess. Always de-energize the machine and secure the spindle before changing inserts or insert screws. Do not reuse visibly damaged or deformed screws. Follow the tooling manufacturer's recommended tightening procedure for the specific holder model.
