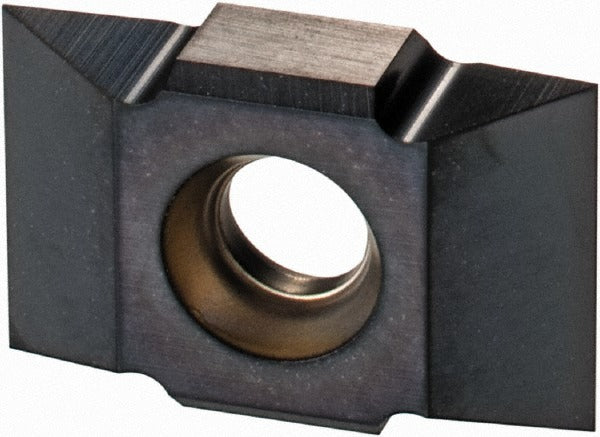

Emuge GF643207.9514 Carbide Thread Mill Insert Tialn-t4

Product Description

The EMUGE GF643207.9514 is a carbide thread mill insert engineered for internal thread milling operations. Carrying the GIGANT-IC insert style designation and manufactured to grade G629, this insert features a TiAlN-T4 coating applied via PVD process for extended wear resistance and heat tolerance at the cutting edge. It covers a pitch range of 1.5 to 2.5 mm, equivalent to 16 to 10 TPI, making it versatile across a useful span of thread sizes in the 10-16 size range. Machinists and tooling specialists install this insert into compatible EMUGE GIGANT-IC thread mill bodies as part of a precision thread milling setup on CNC machining centers.

This insert is suited for internal thread milling in a range of workpiece materials. The TiAlN-T4 coating makes it appropriate for use in cast irons and hardened steels, stainless steels, non-ferrous materials, plastics and composites, and heat-resistant superalloys, corresponding to material codes K, M, N, P, and S. Typical applications include production threading on machining centers where single-point or tap-based threading is impractical, or where thread quality and tool life in difficult materials are priorities. The UN and ISO thread standards supported make this insert applicable across both inch-based and metric thread programs.

Key Features

• GIGANT-IC insert style for use in compatible EMUGE modular thread mill bodies
• Carbide substrate with TiAlN-T4 PVD coating for heat and wear resistance
• Covers 1.5 to 2.5 mm pitch range (16 to 10 TPI) in a single insert
• Supports UN and ISO internal thread standards
• Compatible with workpiece material codes K, M, N, P, and S
• Non-conical geometry; manufacturer grade G629

Compatibility

Designed for use with EMUGE GIGANT-IC modular thread mill systems accepting this insert style. Supports UN and ISO internal thread standards across the 1.5 to 2.5 mm pitch range.
