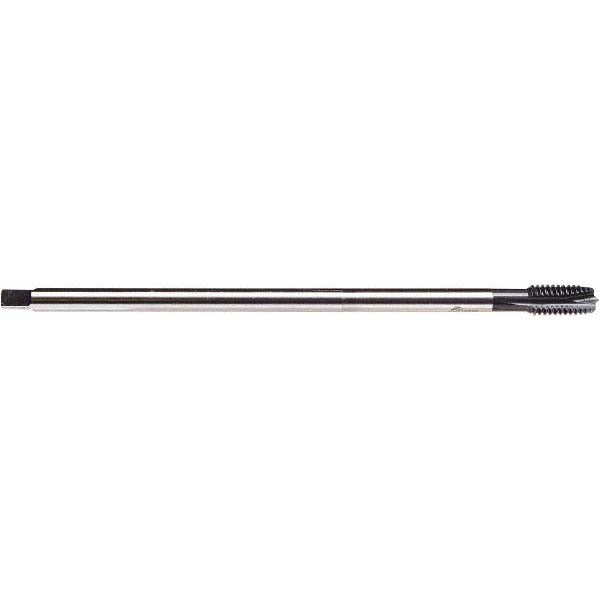

Emuge CU797300.5013 Extension Tap 1/2-13 Cobalt

Product Description

The EMUGE CU797300.5013 is a spiral point plug extension tap designed for threading 1/2-13 UNC holes in production and maintenance machining applications. Built from cobalt high-speed steel and finished with an NE2 coating, this tap delivers increased heat and wear resistance compared to standard HSS tooling. It features three right-hand flutes and a plug chamfer, with an overall length of 8.8 inches and a 1-1/8 inch thread length. The extended reach makes it suitable for threading deep or recessed holes where a standard-length tap cannot reach. A reduced shank at 0.3670 inches diameter and a 0.2750 inch square drive are machined to standard tolerances for use in tap wrenches, extension holders, and CNC tapping attachments.

This tap is intended for threading 1/2-13 UNC fastener holes to a Class 2B or 3B fit across a range of workpiece materials. It is well-suited for aluminum, carbon steel, copper, and stainless steel. The spiral point design pushes chips ahead of the tap into the hole, making it most effective in through-hole applications. Machinists, toolroom technicians, and maintenance trades use this style of tap for both hand-tapping and machine-tapping setups where extended reach is required.

Key Features

• Spiral point plug geometry pushes chips forward - optimized for through-hole threading
• Cobalt construction with NE2 coating for improved heat resistance and tool life
• 8.8 inch overall length provides extended reach for deep or recessed hole access
• Threads to Class 2B and 3B fit for standard and close-tolerance applications
• Right-hand flute direction, 3 flutes, with reduced shank for compatibility with standard tap holders
• Compatible with aluminum, carbon steel, copper, and stainless steel workpieces

Compatibility

Designed for use in standard tap wrenches, extension tap holders, and CNC tapping attachments accepting a 0.3670 inch shank diameter with a 0.2750 inch square drive. Suitable for through-hole 1/2-13 UNC threading applications in aluminum, carbon steel, copper, and stainless steel.

Installation Notes

This tap should be installed by a qualified machinist or toolroom technician familiar with tapping feeds, speeds, and cutting fluid requirements for the workpiece material. Always ensure the workpiece is securely fixtured and the tap is properly aligned with the pre-drilled pilot hole before beginning the threading operation. Use an appropriate cutting or tapping fluid for the material being threaded. Inspect the tap for wear or damage before each use and replace if chipping or dulling is observed.
