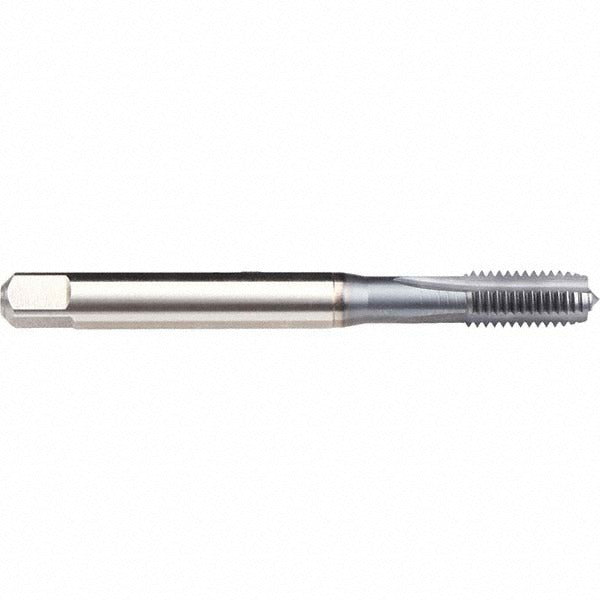

Emuge BU109101.5003 4-40 Unc Machine Tap Ticn Cobalt

Product Description

The EMUGE BU109101.5003 is a straight flute machine tap designed for cutting 4-40 UNC internal threads in production and maintenance applications. Built from cobalt high-speed steel and coated with titanium carbonitride (TiCN), it delivers extended tool life when threading ferrous and non-ferrous workpieces. The modified bottoming chamfer allows threading closer to the bottom of blind holes than a standard plug tap. With a 2-flute straight flute geometry and a right-hand thread direction, this tap suits CNC machining centers, drill presses, and manual tapping operations where chip evacuation is manageable and hole depth is limited.

This tap is suited for blind hole and through-hole threading in steel, stainless steel, and non-ferrous metals. The 4-40 UNC thread form at 40 threads per inch is common in instrument panels, electronics enclosures, and light mechanical assemblies. The TiCN coating reduces friction and built-up edge, making it a practical choice when threading stainless steel or other work-hardening materials. It is intended for use by machinists and maintenance technicians working with hand-tapping equipment or machine-fed tapping heads.

Key Features

• Modified bottoming chamfer for threading close to the bottom of blind holes
• TiCN coating extends wear resistance and reduces friction during cutting
• Cobalt HSS substrate provides heat and wear resistance in tough materials
• 2-flute straight flute design for reliable chip control in shallow-to-moderate depth holes
• Right-hand cut, Class 2B fit, H3 thread limit for standard tolerance threading
• Rated for steel, stainless steel, and non-ferrous metals

Compatibility

Designed for blind hole and through-hole threading applications requiring a 4-40 UNC thread form in steel, stainless steel, and non-ferrous metals. Part of EMUGE Series BU109101.

Installation Notes

Power down and lock out any machine tool before installing or changing taps. Secure the tap in a properly sized tap holder or collet that matches the shank diameter to prevent runout. Apply appropriate cutting fluid for the workpiece material, particularly when threading stainless steel, to prevent galling and premature wear. Do not exceed the recommended feed rate for the thread pitch; forced feeding will break small-diameter taps.
