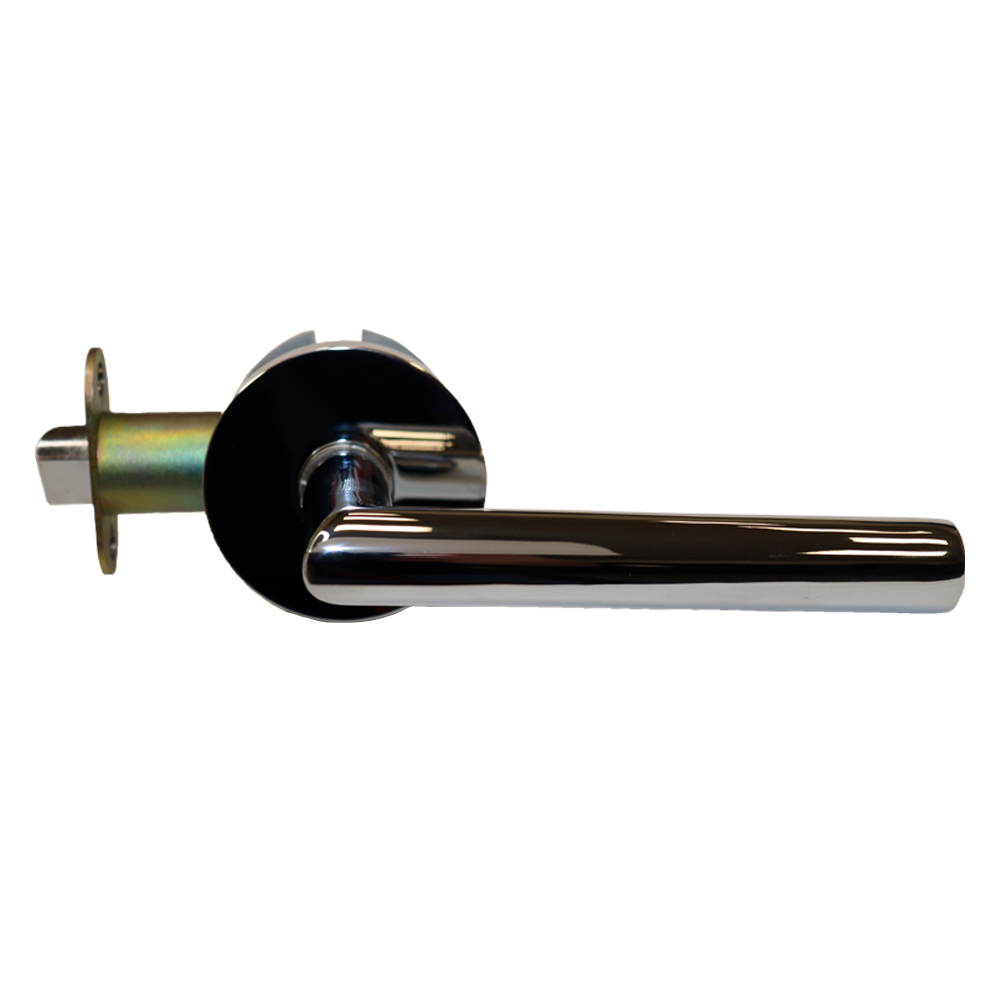

Emtek C5109STUUS26 Stuttgart Lever Passage Polished Chrome

Product Description

The EMTEK C5109STUUS26 is a Stuttgart lever passage set finished in polished chrome, designed for interior doors that do not require locking hardware. The set includes the Stuttgart-style lever mounted on a disk rose with a non-locking passage mechanism. It is built to fit doors ranging from 1-3/8 inches to 1-3/4 inches in thickness and is configured with a 2-3/8 inch backset. The passage function allows the lever to operate the latch freely from both sides, making it well suited for hallways, closets, and common areas. The polished chrome finish delivers a bright, reflective surface that coordinates with a wide range of interior hardware and trim. Installation is handled by a finish carpenter, general contractor, or experienced handyman during door hardware rough-in or retrofit work.

The C5109STUUS26 is intended for interior passage applications in residential construction and remodeling projects. Typical installations include hallway doors, bedroom closets, pantry doors, and other interior openings where a latch but no lock is required. The disk rose profile keeps the wall escutcheon low-profile. The 2-3/8 inch backset is the standard dimension for most pre-bored interior door slabs. The lever and rose assembly ships as a complete, ready-to-install unit in a single-piece quantity.

Key Features

• Stuttgart lever style on a disk rose with passage (non-locking) CF mechanism
• Polished chrome finish for a bright, reflective appearance
• 2-3/8 inch backset fits the most common pre-bored interior door prep
• Compatible with door thicknesses from 1-3/8 inches to 1-3/4 inches
• Sold as a complete passage set, one unit per order

Compatibility

Designed as an OEM-style passage lever set for standard pre-bored interior doors with a 2-3/8 inch backset and door thickness between 1-3/8 inches and 1-3/4 inches.

Installation Notes

Installation is typically performed by a finish carpenter or skilled tradesperson. Before installing, confirm the door bore diameter and backset measurement match the hardware specifications. No special tools beyond a screwdriver are required for most standard door preps. Follow local building codes for hardware placement height on accessible doors where ADA lever requirements apply.
